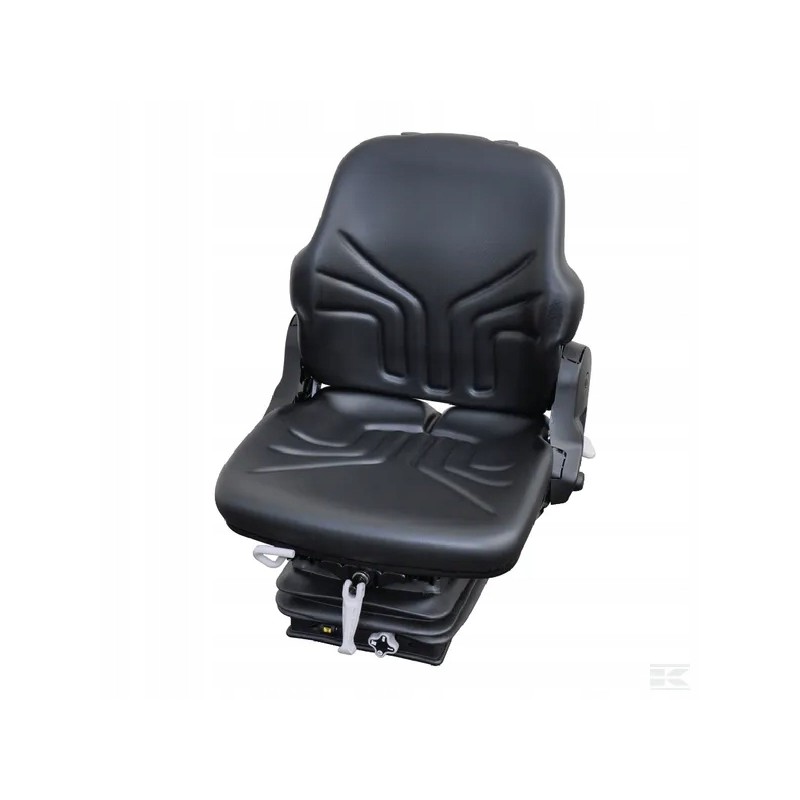

PVC compacto basic seat
  • PVC compacto basic seat
  • PVC compacto basic seat
  • PVC compacto basic seat

PVC compacto basic seat

15012475683118
Grammer
£1,812.84
Quantity
5 Items

Description
Compacto Basic W seat, PVCPart number: G1047331

Unit: Piece

Specifications:

Mechanical seat with scissor suspension and hydraulic shock absorber

Application:

For small tractors, construction machines and mini excavators with a narrow wheel track

Properties:

Seat cushion width 480 mm

Spring deflection 80 mm

Height adjustment 60 mm, 3-stage mechanical

Longitudinal adjustment 180 mm

Weight adjustment 50 - 130 kg, mechanical

Weight 28 kg

Backrest inclination adjustment

Benefits: Higher seating comfort

Suspension type: Mechanical

Upholstery material: PVC< p>

Upholstery color: Black

Total width: 480 mm

Consists of:

Seat

Without extension backrests

Without armrests

Armrests included: No

Headrest included: No

Seat belts included: No:< p>

Switch included: No

Auto-adjustment to the user's weight: No

Model: MSG83/721

Backrest angle adjustment: 35 °

Height adjustment: 6 cm

Depth: 570 mm

Minimum working load: 50 kg

Suspension stroke: 8 cm< p>

Max working load: 130 kg

Fits machine/vehicle models: MSG 83 / 721

Total height: 715 mm

Heated: No

Total length: 570 mm

Product Details
Grammer
15012475683118
G1047331
5 Items
New

Data sheet

Manufacturer
Grammer
Part Number
G1047331
Original part number
G1047331
Replacement part numbers
G1047331
