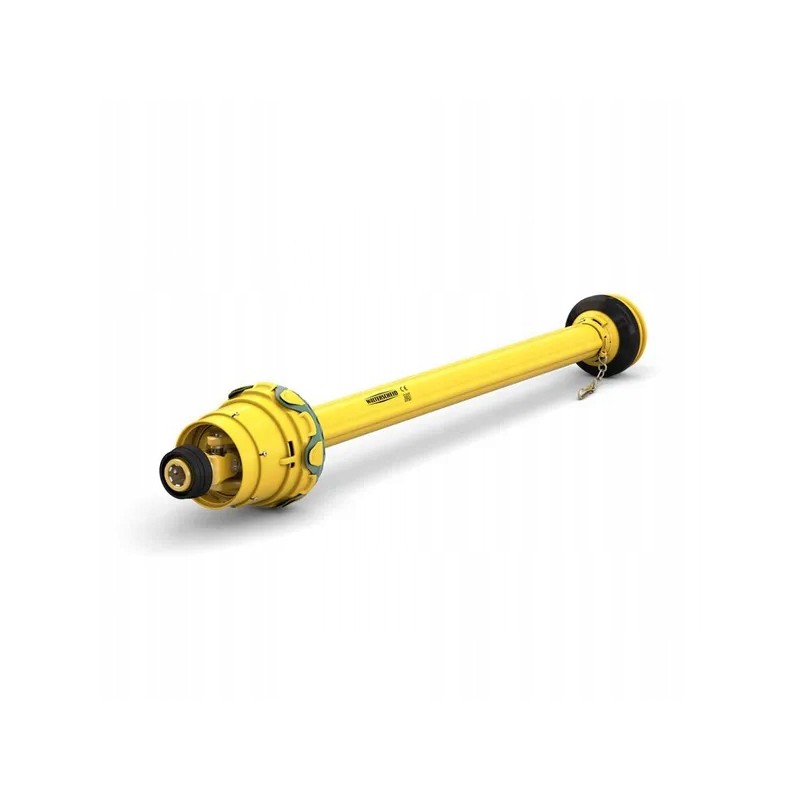

Wide-angle drive shaft WWE 2480 L=1610 mm Walterscheid

Part number: K. WWE24801610

EAN: 8432970199668

Unit: Piece

Application:

Feed wagons

Water wagons

Combine harvesters

Self-loading wagons

Properties:

Tractor side 1-3/8' (6) flange gate

Machine side 1-3/8' (6) Flange gate

Grease interval: 8 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

The CE mark is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º

Max. dynamic power 540 rpm: 39 kW, 695 Nm

Max. dynamic power 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Connection type on the tractor side: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of connection keys on the machine-side: 6

Connection type on the machine side: Flanged gate valve

Accessories on the machine side: Quick-connect fork

Shaft size: WWE 2480

Length: 1610mm

Power at 540 rpm: 39kW

Power at 1000 rpm: 61kW

Diameter of the cross sleeve on the tractor side - longer part: 27mm

Diameter of the cross arm sleeve on the tractor side: 32mm

Length of the cross arm on the tractor side - longer part: 94mm

Length of the cross arm on the tractor side: 76mm

Diameter of the cross arm sleeve on the machine side: 32mm

Length of the cross on the machine side: 76mm

Coupling type: n/a

Outer pipe profile type: 2aG

Wall thickness of the outer pipe: 3.5mm

Larger diameter of the outer pipe: 57.5mm

Profile type of the inner pipe: 1bGA

Thickness inner pipe walls: 4.5mm

Larger outer diameter of the inner pipe: 49mm

Pipe profile shape: Lemon

Max. static torque: 4000N m

Cover type: SD25

OE reference number: 1610137
