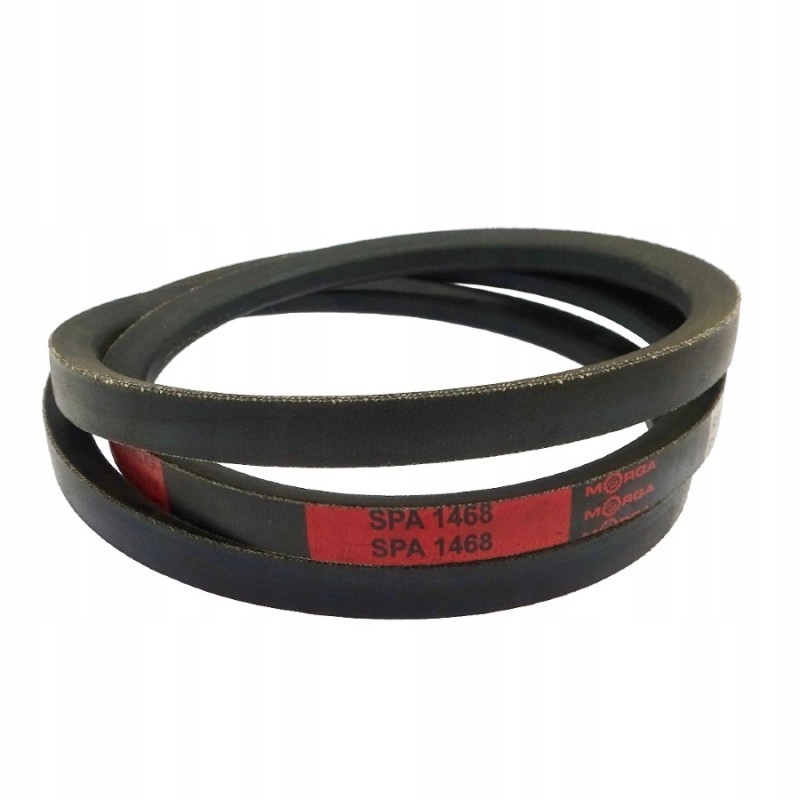

Spa bar 1468 morga super reinforced

SPA-1468 MORGA belt, super reinforced MORGA

SPA-1468 V-belt Narrow-profile V-belt used in various types of machines and devices as a drive transmission element.

The belt is used in the engine fan of the Bizon combine harvester.

Dimensions: *height: 10 mm

*width: 12.7 mm

*length: 1468 mm

Features:

Morga V-belts with a "SPA" profile are made of rubber based on caoutchoucs with good compression resistance and high flexibility. The core of the belt is made of rubber mixtures with textile filling, providing additional deformation and compression resistance. Additional wrapping with cotton-polyester fabric with high elasticity and low abrasion increases the life of the belts.

*Permissible peripheral speed 40 m/s

* Resistance to temperatures ranging from -35°C to +100°C

*Oil resistance

*Antielectrostaticity

*Weight: ~ 0.139 kg/m

*Recommended minimum pulley diameter dp: 90 mm

Application:

Gears where the belt tensioning possibilities are limited or access to tensioning adjustment is difficult and high impact loads are transferred. e.g.: single- and double-cylinder piston pumps and compressors, jacks, lifts, etc. Wherever a strong and durable V-belt is needed

Engine fan belt in a Bizon combine harvester. Transmission and power transmission / V-belts / Narrow-profile belts / SPA belts
