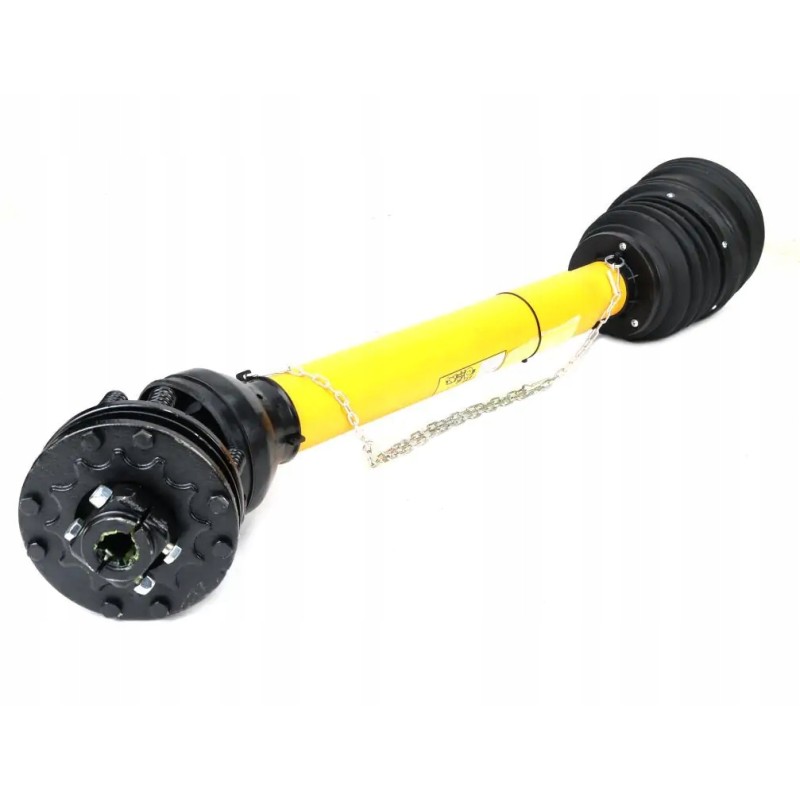

Articulated and telescopic shaft 1250 1690mm 1240nm width

PTO shaft 1250-1690mm 1240Nm width Index W892621250Clutch: Wide-angle, Friction Clutch

Maximum length: 1650

Minimum length: 1250

Inner tube thickness: 54

Outer tube thickness: 63

Nominal power: 70 ( 95 )

Mounting to the machine: 1 3/8' Z21

Mounting to the tractor: 1 3/8' Z21

Torque: 1240

Operating angle: Max 35° temporarily 80°

Bearing diameter: 35.01

Height of the cross: 106.3

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227801, Cross fork - WR219801, Internal pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129, Coupling - WR213850

Inner pipe wall thickness: 5

Pipe wall thickness external: 4

Clutch disconnecting power: 2000

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z21cal

Mounting to the machine: 1 3/8' Z21cal

Telescopic connector type: Triangular tube

Minimum length: 1250mm

Maximum length: 1650mm

Nominal power: 70 ( 95 )KW (HP)

Clutch: Wide Angle, Friction Clutch

Inner tube thickness: 54mm

Outer tube thickness: 63mm

Bearing diameter: 35.01mm

Cross height: 106.3mm

Works with: External fork -WR227801, Krzyżak - WR219801, Internal pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129, Clutch - WR213850

Clutch disengaging power: 2000Nm

Torque: 124 0Nm

Working angle: Max 35° temporarily 80°

Inner pipe wall thickness: 5mm

Outer pipe wall thickness: 4mm

EAN 5902287212235

The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.
