Wide angle joint shaft wwz 2480 l 1210 mm shaft

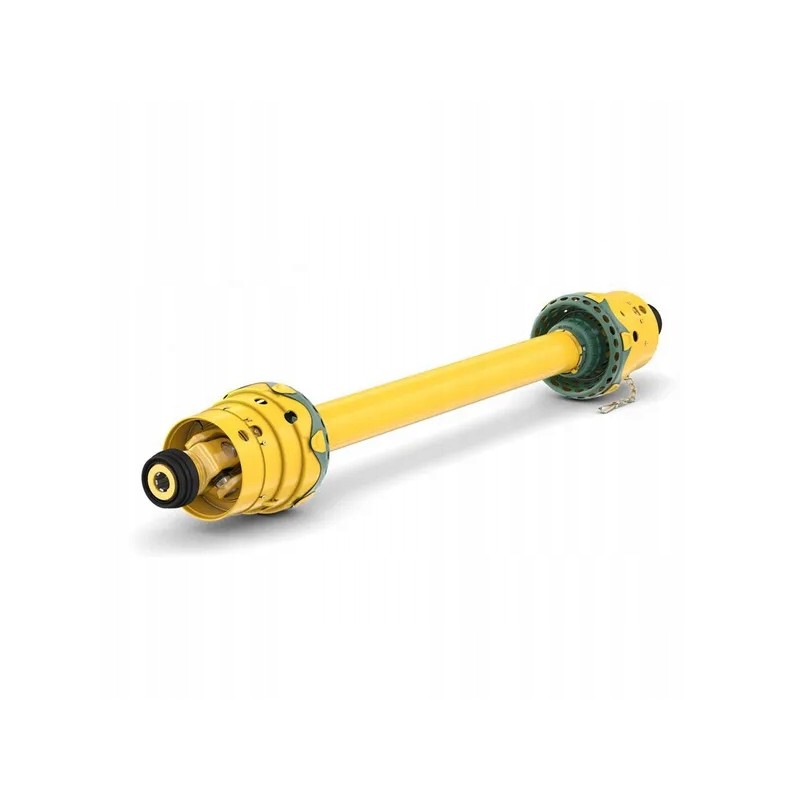

Wide-angle drive shaft WWZ 2480 L=1210 mm Walterscheid

Part number: K. WWZ24801210

EAN: 8432970200166

Unit: Piece

Application:

Feed wagon

Slurry barrel

Combine harvesters

Self-loading wagon

Properties:

Tractor side 1-3/8' slider (6)

Machine side, sliding pin 1-3/8' (6)

Grease interval: 8 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º for a short time

Max. dynamic power 540 rpm: 39 kW, 695 Nm

Max. dynamic power 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

Wide-angle drive shaft, both sides, with protective tube

Declaration of conformity

Operating manual

Connection type on the tractor side: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of connection keys on the machine-side: 6

Connection type on the machine side: Flanged gate valve

Accessories on the machine side: Quick-connect fork

Shaft size: WWZ 2480

Length: 1210mm

Power at 540 rpm: 39kW

Power at 1000 rpm: 61kW

Diameter of the cross sleeve on the tractor side - longer part: 27mm

Diameter of the cross arm sleeve on the tractor side: 32mm

Length of the cross arm on the tractor side - longer part: 94mm

Length of the cross arm on the tractor side: 76mm

Diameter of the cross arm sleeve on the machine side - longer part: 27mm

Diameter of the cross head sleeve on the machine side: 32mm

Length of the cross head on the machine side - longer part: 94mm

Length of the cross head on the machine side machine side: 76mm

Coupling type: n/a

Outer tube profile type: 2aG

Outer tube wall thickness: 3.5mm

Larger diameter of the outer pipe: 57.5mm

Profile type of the inner pipe: 1bGA

Wall thickness of the inner pipe: 4.5mm

Diameter external larger inner pipe: 49mm

Pipe profile shape: Lemon

Max. static torque: 4000N m

Cover type: ST25

OE reference number: 1800122

Related articles you can find in our other offers:

Spare parts

Outer cover, half, ST25 flex 1113794

Inner cover, half, ST25 flex 1113795

Shaft cross, Ø 27x76.0 mm / Ø 32x94.0 mm, 2480 Walterscheid 3506141

Fork, for profiled pipe, for spring pin, 49x39.5 mm, W2480 Walterscheid 351310

Fork, for profiled pipe, for spring pin, 57.50x48 mm, W2480 Walterscheid 351410

Fork, double, 27 mm, W2480 Walterscheid 354105

Fork, quick-connect with retaining ring, 1-3/8' - 6 cutters, W2480 Walterscheid 3583830

Chain 600 mm 823608

Walterscheid slip ring, SD25, D-175 mm, W2480/P480 series 828314

Walterscheid protective cap, SD25 FLEXO, D-167 mm, L-186 mm, W2480 series 850102
