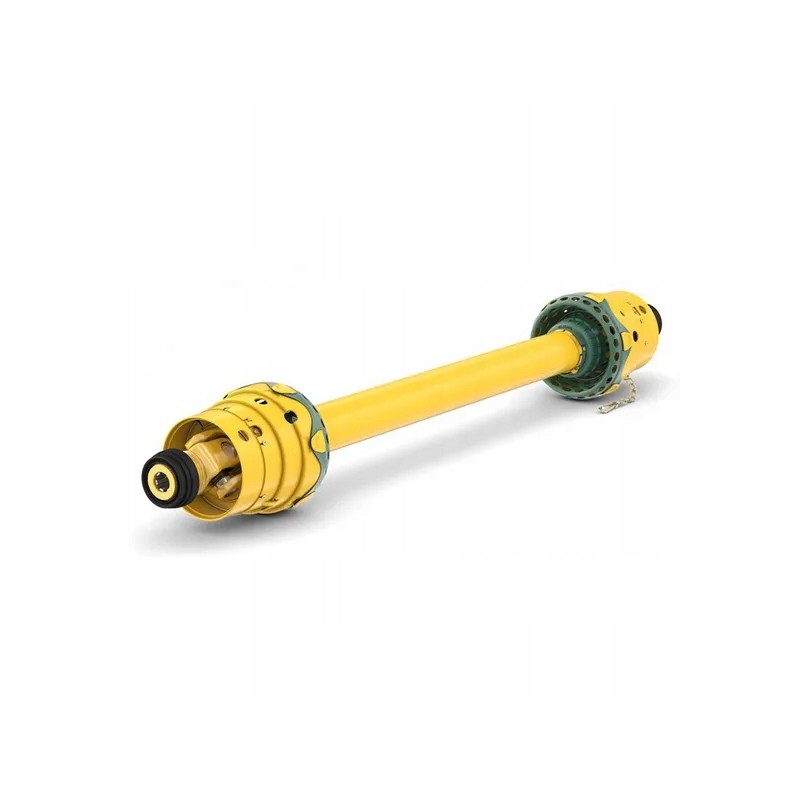

Wide angle joint shaft wwz 2580 l 860 mm wt

Wide-angle drive shaft WWZ 2580 L=860 mm Walterscheid

Part number: K. WWZ2580860

EAN: 8432970274082

Unit: Piece

Application:

Manure spreader

Slurry barrel

Large square baler

Self-loading wagon

Features: < p>

Tractor side 1-3/8' slider (6)

Machine side, sliding pin 1-3/8' (6)

Lubrication frequency: 8 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º for a short time

Max. dynamic power 540 rpm: 66 kW, 1175 Nm

Max. dynamic power 1000 rpm: 102 kW, 975 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

Wide-angle drive shaft, on both sides, with protective tube

Declaration of conformity

Operating manual

Connection type on the tractor side: Automatic flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection slots: 6

Connection type on the machine side: Automatic flange gate valve

Machine-side accessories: Quick-connect fork

Shaft size: WWZ 2580

Length: 860mm

Power at 540 rpm: 66kW

Power at 1000 rpm: 102kW

Diameter of the cross sleeve on the tractor side - longer part: 32mm

Diameter of the cross sleeve on the tractor side: 36mm

Length of the cross on the tractor side - longer part: 106mm

Length of the cross on the tractor side: 89mm

Diameter cross head sleeve on the machine side - longer part: 32mm

Diameter of cross head sleeve on the machine side: 36mm

Length of cross head on the machine side - longer part: 106mm

Length cross on the machine side: 89mm

Coupling type: n/a

Outer tube profile type: S5

Outer tube wall thickness: 4.5mm

Major external diameter of the outer tube: 61mm

Profile type of the internal tube: S4GA

Major external diameter of the internal tube: 51mm

Shape pipe profile: Star

Max. static torque: 6000N m

Cover type: ST25

OE reference number: 1800125
