Walterscheid k92 friction clutch 1 3 8 z6 series

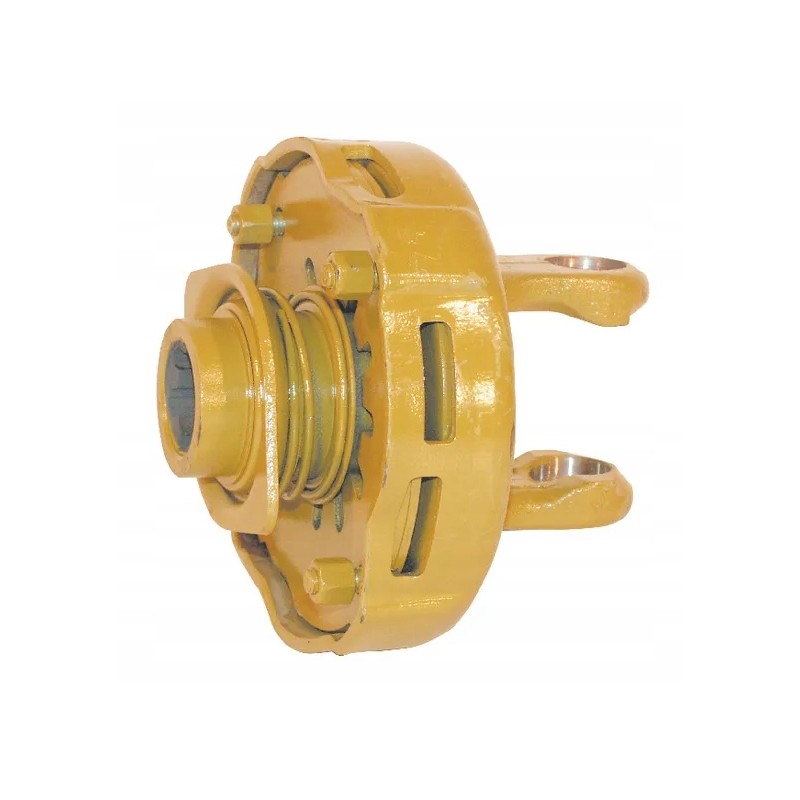

Friction clutch, Walterscheid, K92, 1 3/8 Z6, W2300 series

Part number: K. 561151675

EAN: 8435194013277

Unit: Piece

Specifications:

Compact design

uninterrupted force transfer

catches short-term peak loads

Application:

Mowers

rotary harrows

pick-ups

Features:

Regardless of the direction of rotation

power transmission with friction discs

cannot be adjusted later

suitable for use as a starting clutch

Technical information: Follow the maintenance instructions

Benefits:

Small installation space

torque retention

transition without jerking

Type - code: K92

Connection type: Flanged gate valve

Connection outside diameter:

1-3/8 inch

1.375 inch

Number of connection cutters: 6

Shaft/shaft size:

W2300

P300

Maximum rotational speed: 1000 rpm

Max. static torque: 750N m

Cross sleeve diameter: 27mm

Cross length: 84mm

Outer diameter: 170mm

LDength of coupling part: 44mm

Reference number OE: 1053333

Fits machine/vehicle brand:

Freudendahl

Matsui< p>

Jernsen

Carroy

Herriau

Kubota

Glaenzer

Size: W 2300cal
