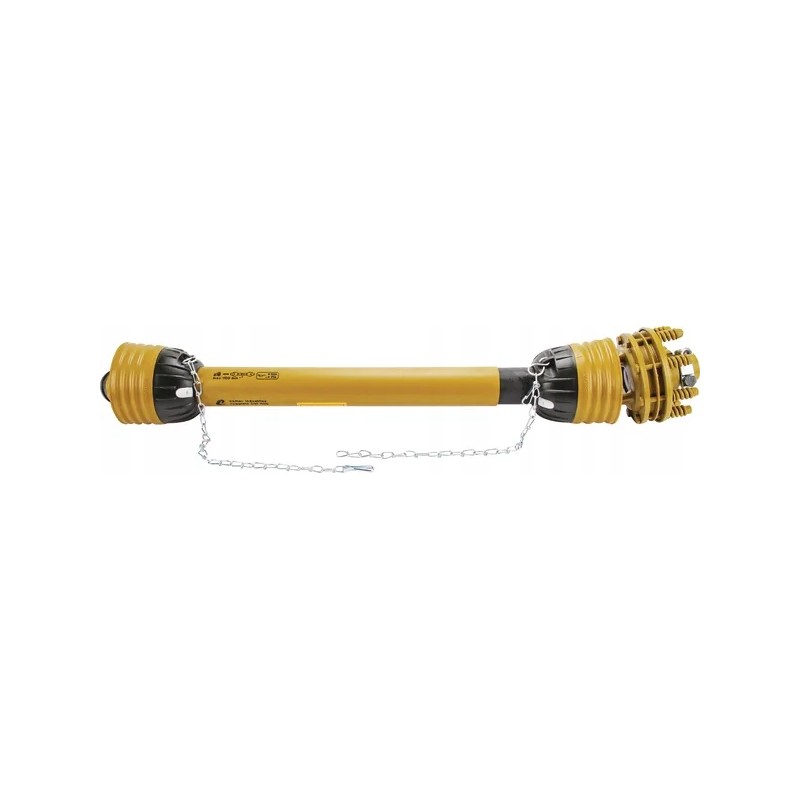

Cardan shaft t60 l 860 mm friction clutch unit

PTO shaft T60 L=860 mm one-way friction clutch Comer

Part number: K. T600860CE112RF8

EAN:

Unit: Piece

Product description: Complete drive shaft with friction overrunning clutch

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of keys on the connection on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Outer diameter of the connection on the machine side: 1-3/4inch

Number of keys for machine-side connection: 6

Machine-side connection type: Clamping screw (tangential)

Machine-side accessories: One-way friction clutch

Size shaft: T60

LDength: 860mm

Power at 540 rpm: 47kW

Power at 1000 rpm: 74kW

Diameter of the cross bush on the tractor side: 30.2mm

Length of the cross on the tractor side: 92mm

Diameter of the cross bush on the machine side: 30.2mm

Length of the cross on the machine side: 92mm

Clutch type: RF8

Clutch torque max.: 1400N m

Outer pipe wall thickness: 4mm

Larger outer diameter of the outer tube: 54mm

Wall thickness of the inner tube: 4mm

Larger external diameter of the inner tube: 45mm

Pipe profile shape: Triangular

Dynamic torque max.: 1450N m

Reference number OE: 0769502011
