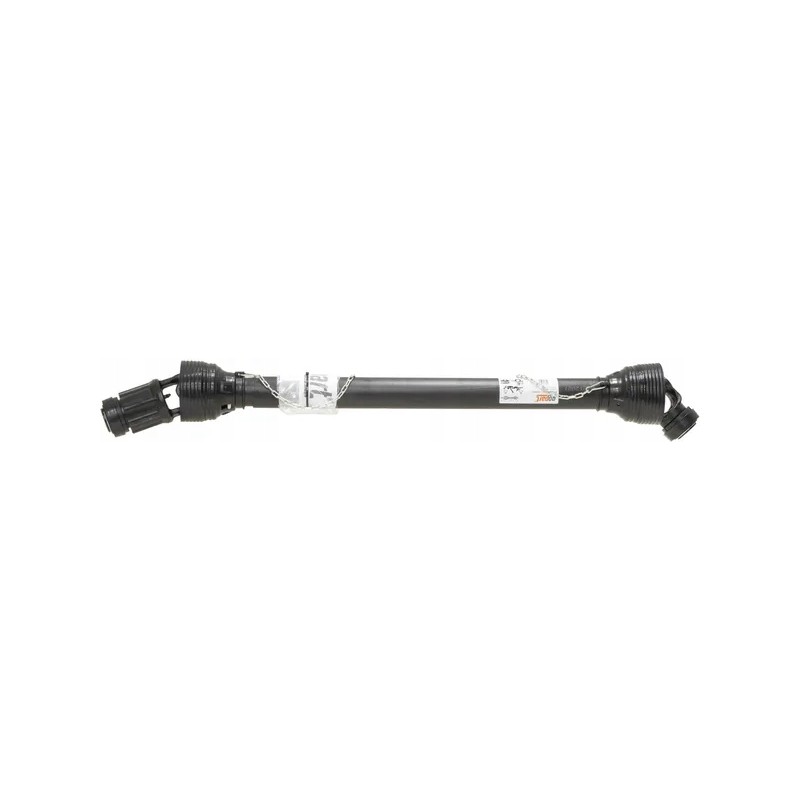

Pto shaft 20 l 860 mm ratchet clutch

PTO shaft 20 L=860 mm, gopart ratchet clutch

Part number: K. PTO20Y21T860M34GP

EAN: 8719493074901

Unit: Piece

Product description: Drive shafts with attached ratchet clutch are suitable for various agricultural machines

Advantages:

A cost-effective alternative in the low power range

Meets all international safety requirements

Product details:

PTO20

Max. dynamic power 540 rpm: 15kW

Max. dynamic power 1000 rpm: 23kW

PTO40

Max. dynamic power 540 rpm: 26kW

Max. dynamic power 1000 rpm: 40kW

PTO50

Max. dynamic power 540 rpm: 35kW

Max. dynamic power 1000 rpm: 54kW

PTO60

Max. dynamic power 540 rpm: 47kW

Max. dynamic power 1000 rpm: 74kW

Properties: Meets all international safety requirements

Technical information:

PTO20

Max. dynamic power 540 rpm: 15kW

Max. dynamic power 1000 rpm: 23kW

PTO40

Max. dynamic power 540 rpm: 26kW

Max. dynamic power 1000 rpm: 40kW

PTO50

Max. dynamic power 540 rpm: 35kW

Max. dynamic power 1000 rpm: 54kW

PTO60

Max. dynamic power 540 rpm: 47kW

Max. dynamic power 1000 rpm: 74kW

Benefits: Cheap alternative in the low power range

Outer diameter of the connection on the tractor side: 1-3/8inch

Number of keys for connection on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Outer diameter of the connection from machine side: 1-3/8inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Ratchet clutch

Shaft size: PTO 20

Length: 860mm

Power at 540 rpm: 15kW

Power at 1000 rpm /min: 23kW

Diameter of the cross sleeve on the tractor side: 23.8mm

Length of the cross on the tractor side: 61.3mm

Diameter of the cross sleeve on the machine side : 23.8mm

Length of the cross on the machine side: 61.3mm

Clutch type: n/a

Clutch torque max.: 900N m< p>

Wall thickness of the outer pipe: 3.4mm

Larger diameter of the outer pipe: 43.5mm

Wall thickness of the inner pipe: 3.2mm

Larger outer diameter of the inner pipe: 36mm

Pipe profile shape: Triangular

Maximum dynamic torque: 450N m
