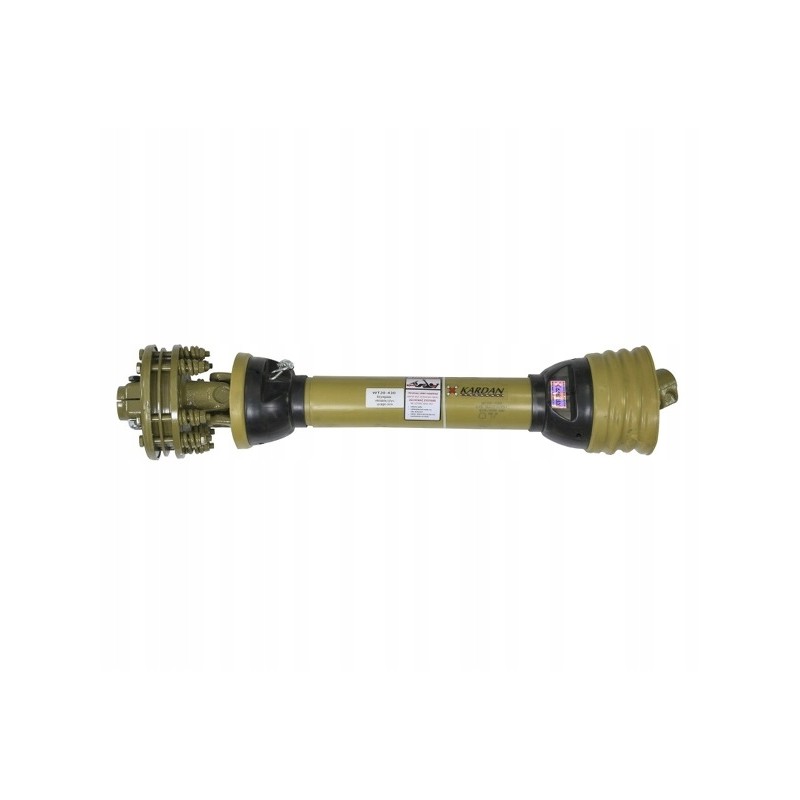

PTO shaft 575nm 610 872mm friction clutch

The subject of the offer is:

*Lemon PTO shaft 575Nm, 610-872mm, cross 27x75, friction clutch X Cardan

Characteristics:

Continuous operation torque: 575Nm< p>

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 27x74.6mm

Tube profile: lemon

Inner tube dimensions: 39.5/49/5mm

Outer tube dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm: 52kW

Torque at 1000 rpm : 450Nm

*The overload clutch with a friction disc is used to protect against overloads and, consequently, failures of components of active machines (driven by the PTO).

*It is very important to use clutches overload protection wherever the working elements of the machine are exposed to variable and sudden load changes. e.g. in rotary tillers, rotary harrows, manure spreaders, etc.

*When the load increases above the set value, the friction disc slips. The activation torque can be adjusted by loosening or tightening the screws around the circumference.

*The friction disc is a replaceable element and is available as a spare part, so the clutch can perform its functions for many years.
