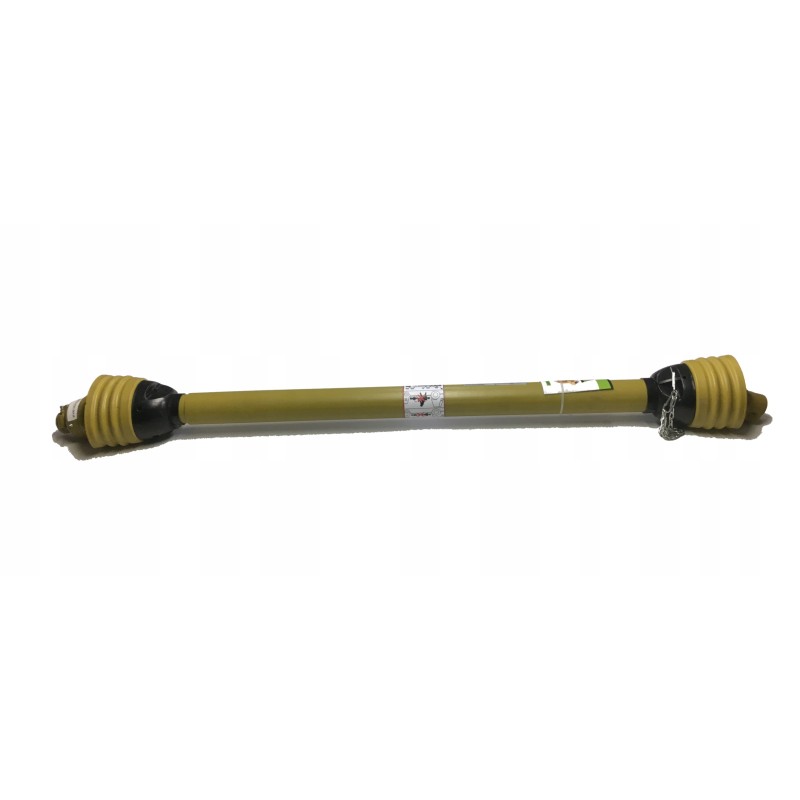

1410mm universal joint shaft, one-way clutch

The subject of the advertisement is:

Pan shaft lemon 27x74.6 1410mm, 460Nm, one-way clutch

Manufacturer: EURO DRIVESHAFTS

Dimensions given in the technical drawing

Profile pipe - lemon

One-way clutch

Cross head: 27x74.6

Total length: 1410mm

Cross spacing: 1210mm

Tractor connection: 6 cutters 34.9mm (1 3/8')

Machine connection: 6 cutters 34.9mm (1 3/8')

Nominal power: 460Nm

The one-way clutch is designed to protect against excessive torque caused by the inertia of the agricultural machine, which occurs during braking and during complete stopping of the machine. A one-way clutch transmits torque in one direction only by engaging the pawls with the clutch housing. In the opposite direction, the clutch rotates freely. The standard direction of the overrunning clutch is clockwise. The one-way clutch is always mounted on the side of the agricultural machine. If we are unable to install the clutch on the machine side due to design features or a different clutch is installed, you can install a one-way clutch on the shaft on the tractor side.

We configure the shafts according to the customer's needs

Order fulfillment within 24 hours

We issue an invoice

Please see our other ads!

Possibility of shipping by courier on delivery.
