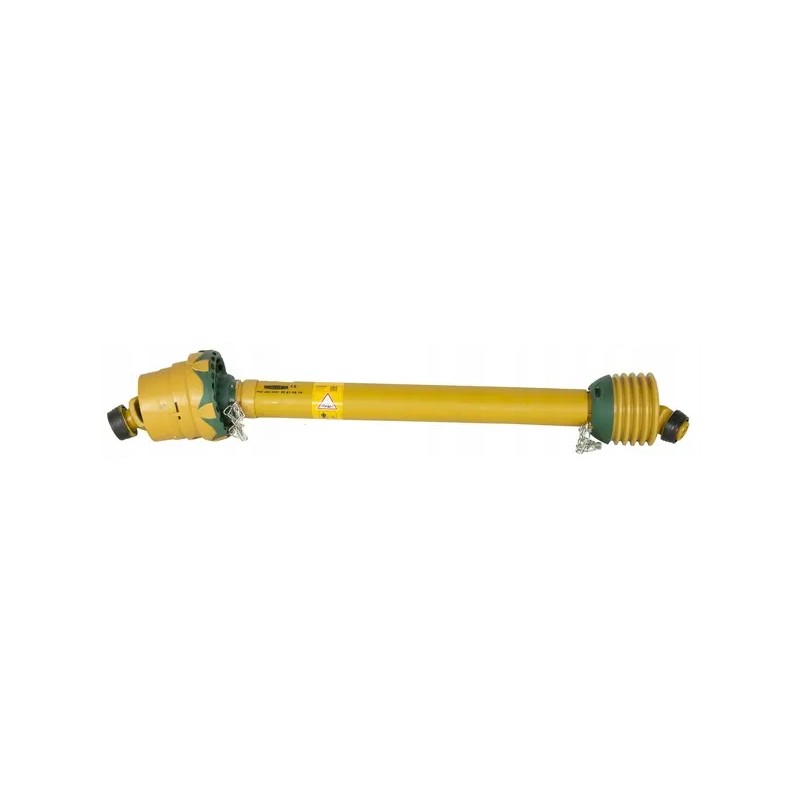

Wide angle joint shaft pwe 580 l 1210 mm walt

Wide-angle drive shaft PWE 580 L=1210 mm Walterscheid

Part number: K. PWE5801210

EAN:

Unit: Piece

Specifications :

Compact joint bearing, built into the centering system

The profiled safety tube prevents simultaneous rotation.

The sealed profiled tube prevents dirt from entering.

Quickly removable cover

No safety chain required on the tractor side

Application:

Feeder wagon

Water wagon

Harvesters

Self-loading wagons

Properties:

Lubrication interval: max. 60 hours

Meeting the requirements of the directive WE 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use : 25º

The deflection angle can only be 80º

Max. dynamic power 540 rpm: 66 kW, 1175 Nm

Max. dynamic power 1000 rpm: 102 kW, 975 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Benefits:

Longer service life than standard drive shaft

Lower maintenance costs

Faster engagement

Tractor side connection OD: 1-3/8 inch

Number of tractor side connection keys: 6

Consists of:

Wide angle drive shaft , one-sided, with protective tube

Declaration of conformity

Operating manual

Delivery without connection forks

Connection type on the tractor side: Automatic shutter flange

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of connection keys on the machine-side: 6

Machine-side connection type: Clamping cone

Machine-side accessories: Clamping yoke

Shaft size: PWE 580

Length: 1210mm

Power at 540 rpm: 76kW

Power at 1000 rpm: 117kW

Diameter of the cross sleeve on the tractor side - longer part: 32mm< p>

Diameter of the cross bush on the tractor side: 36mm

Length of the cross on the tractor side - longer part: 106mm

Length of the cross on the tractor side: 89mm

Diameter of the cross sleeve on the machine side: 36mm

Length of the cross on the machine side: 89mm

Coupling type: n/a

Outer pipe profile type: S5

Outer tube wall thickness: 4.5mm

Larger outer diameter of the outer tube: 61mm

Internal tube profile type: S4GA

Larger outer diameter of the inner pipe: 51mm

Pipe profile shape: Star

Max. static torque: 6000N m

Cover type: PG25< p>

Reference number OE: 1800140
