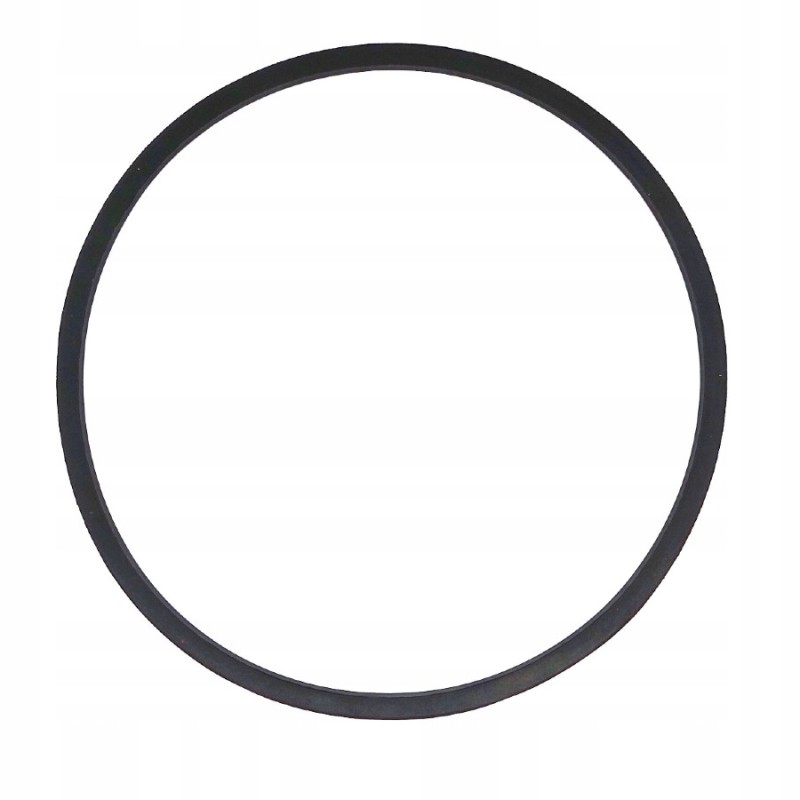

HB 1165 morga belt, super reinforced

HB-1165 MORGA belt, super reinforced MORGA

HB-1165 V-belt Normal-profile V-belts are used in V-belt transmission.

In cross-section, they have the shape of an isosceles trapezoid,

which ensures a high value of friction force with low initial tension of the belt and very good cooperation between the belt and the pulleys.

The belt is used in the engine of the Ursus C-360

agricultural tractor Dimensions

*width: 17 mm

*height: 11 mm

*length: 1165 mm

Properties Morga V-belts with a "B" profile are made of rubber based on caoutchoucs with good compression resistance and high flexibility. The core of the belt is made of rubber mixtures with textile filling, providing additional deformation and compression resistance. Additional wrapping with cotton-polyester fabric with high elasticity and low abrasion increases the life of the belts.

*Permissible peripheral speed 30 m/s

* Resistance to temperatures ranging from -35°C to +100°C

*Oil resistance

*Antielectrostaticity

*Weight: ~ 0.20 kg/m

*Recommended minimum pulley diameter dp: 112 mm

Application

Heavy-duty gearboxes operating under frequent overloads, e.g. single- and double-cylinder piston pumps and compressors, jacks, lifts, etc. Wherever a durable and resistant V-belt is needed.

Belt for the Ursus C-360 agricultural tractor engine

Transmission and drive transfer / V-belts / Normal profile belts / HB belts - 17
