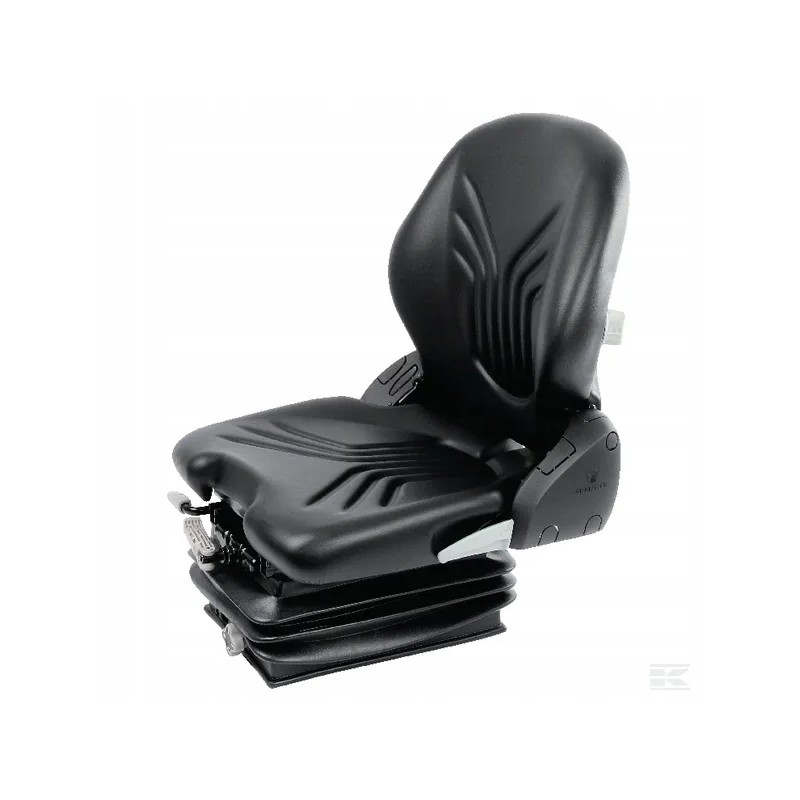

Compacto basic m seat made of grammer material

Compacto Basic M seat made of Grammer Plastic Part number: G1081362

Unit: Piece

Specifications:

Mechanical seat with scissor suspension and hydraulic damper

Application:

For small tractors, construction machines and mini excavators with a narrow wheel track

Properties:

Seat width 450 mm

Deflection springs 80 mm

Height adjustment 60 mm, adjustable in 3 stages

Longitudinal adjustment 210 mm

Adjustment depending on body weight 50 - 130 kg

Weight 27 kg

Backrest inclination adjustment

Benefits:

Provides optimal sitting comfort in the smallest possible space

Suspension type : Mechanical

Upholstery material: PVC

Upholstery color: Black

Total width: 450 mm

Consists of:

Seat

Without backrest extension

Without armrests

Armrests included: No

Headrest included: No< p>

Seat belts included: No

Switch included: No

Auto-adjustment to the user's weight: No

Model: MSG83/521< p>

Backrest angle adjustment: 35°

Height adjustment: 6 cm

Depth: 552 mm

Minimum working load: 50 kg

Suspension stroke: 8 cm

Max working load: 130 kg

Fits machine/vehicle models: MSG 83 / 521

Total height: 694 mm

Heated: No

Total length: 552 mm
