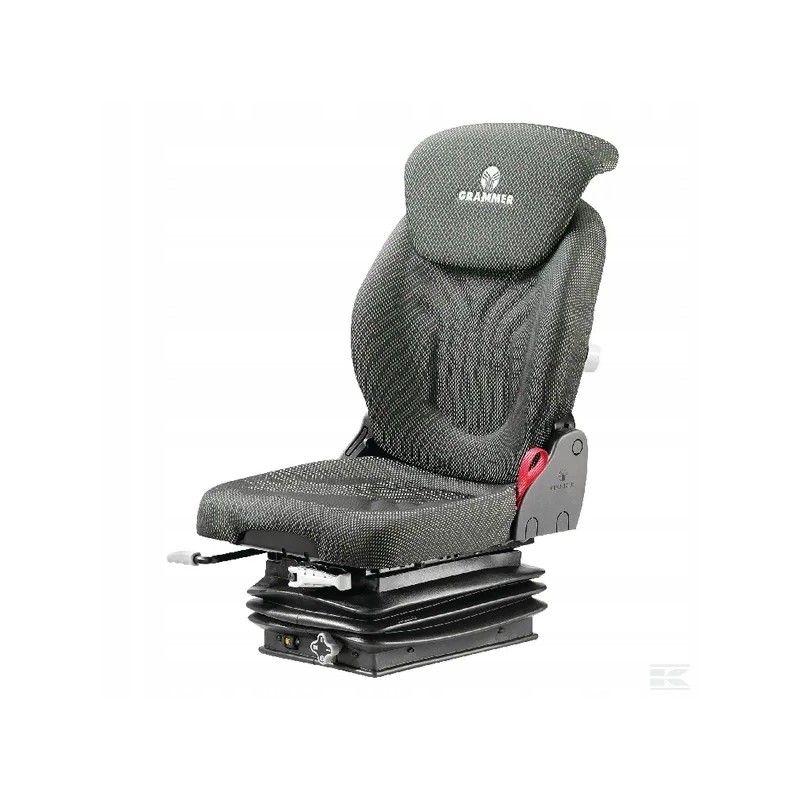

Compacto basic seat with new design grammer

Compacto Basic S New Design Grammer SeatPart Number: G1289042

Unit: Piece

Specifications:

Mechanical Seat with Scissor Suspension and Hydraulic Damper

Application:

For small tractors, construction machines and mini excavators with a narrow wheel track

Properties:

Seat cushion width 400 mm

Spring deflection 80 mm

Height adjustment 60 mm, adjustable in 3 stages

Longitudinal adjustment 210 mm

Adjustment depending on body weight 50 - 130 kg

Weight 25 kg

Backrest inclination adjustment

Benefits: Provides optimal sitting comfort in the smallest possible space

Suspension type: Mechanical

Upholstery material: Fabric

Upholstery color: Black

Total width: 400 mm

Consists of:

Seat< p>

Without backrest extension

Without armrests

Armrests included: No

Headrest included: No

Seat belts included: No

Switch included: No

Auto-adjustment to the user's weight: No

Model: MSG83/511

Backrest angle adjustment: 35 °

Height adjustment: 6 cm

Depth: 532 mm

Minimum working load: 50 kg

Suspension stroke: 8 cm

Max working load: 130 kg

Fits machine/vehicle models: MSG83/511

Total height: 681 mm:

Heated: No

Total length: 532 mm
