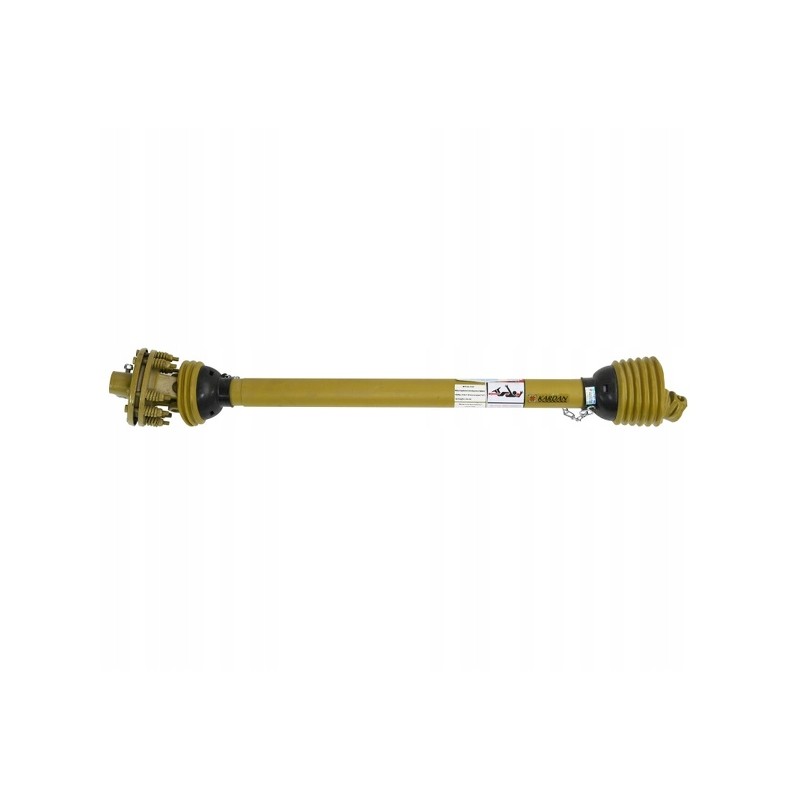

PTO shaft 460nm 1010 1707mm friction clutch

The subject of the offer is:

*Triangular PTO shaft 460Nm, 1010-1707 mm, cross 27x75, friction clutch X Cardan

Characteristics:

Continuous operation torque: 460Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 27x75mm

Tube profile: triangle

Inner tube dimensions: 36x4.5mm

Outer tube dimensions: 43x3mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: friction

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 26kW

Torque at 540 rpm: 460Nm

Power at 1000 rpm: 40kW

Torque at 1000 rpm : 380Nm

*The overload clutch with a friction disc is used to protect against overloads and, consequently, failures of components of active machines (driven by the PTO).

*It is very important to use clutches overload protection wherever the working elements of the machine are exposed to variable and sudden load changes. e.g. in rotary tillers, rotary harrows, manure spreaders, etc.

*When the load increases above the set value, the friction disc slips. The activation torque can be adjusted by loosening or tightening the screws around the circumference.

*The friction disc is a replaceable element and is available as a spare part, so the clutch can perform its functions for many years.
