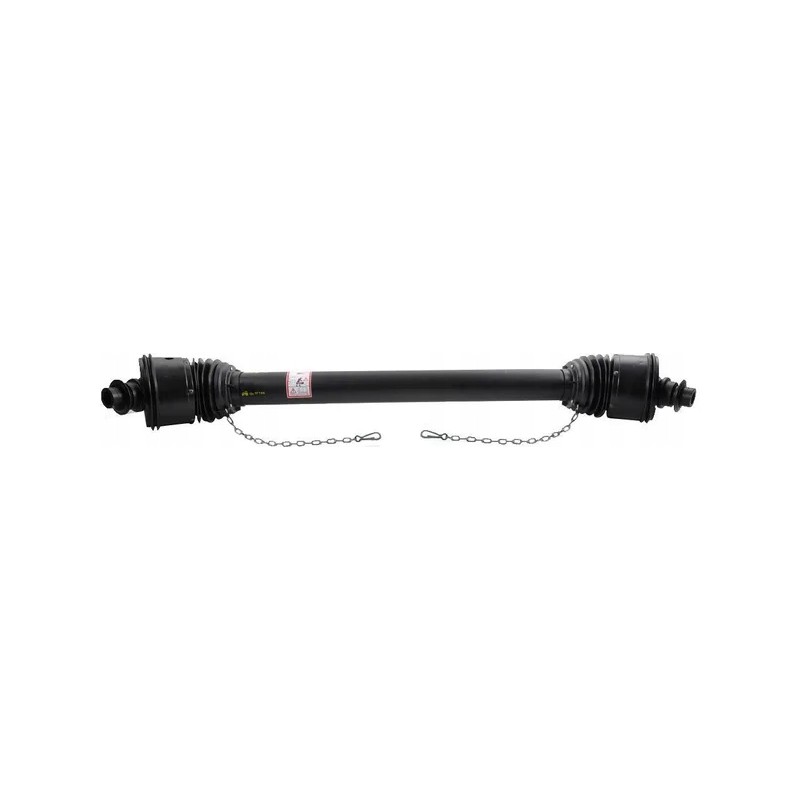

Wide angle joint shaft s6 l 1210mm bondioli

PTO shaft, wide angle S6 L=1210mm Bondioli&Pavesi

Part number: K. CS6R121CEWR7WR7

EAN:

Unit: Piece

Specifications:

Square profile tube provides maximum torsional resistance

Torque is distributed evenly over wide contact surfaces

Lubrication intervals extended to 50 hours

Application:

Manure spreader

Feeder wagon

Steer

Self-loading wagon

Round balers

Properties: CE marked

Technical information:

Please follow the Bondioli & Pavesi operating instructions

Performance at a deflection angle of 5° and a service life of 1000 hours< p>

Benefits:

Low friction resistance

Lower wear

Higher durability

Outer diameter of the connection on the tractor side : 1-3/8inch

Number of connection keys on the tractor side: 6

Consisting of:

Articulated shaft with protective tube

Declaration of conformity

User manual

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection keys: 6

Shaft size: S6

Length: 1210mm

Power at 540 rpm: 40kW

Power at 1000 rpm: 61kW

Diameter of the cross sleeve on the tractor side: 27mm

Length of the cross on the tractor side: 100mm

Diameter of the cross sleeve on the machine side: 30.2mm

Length of the cross on the machine side: 79.4mm
