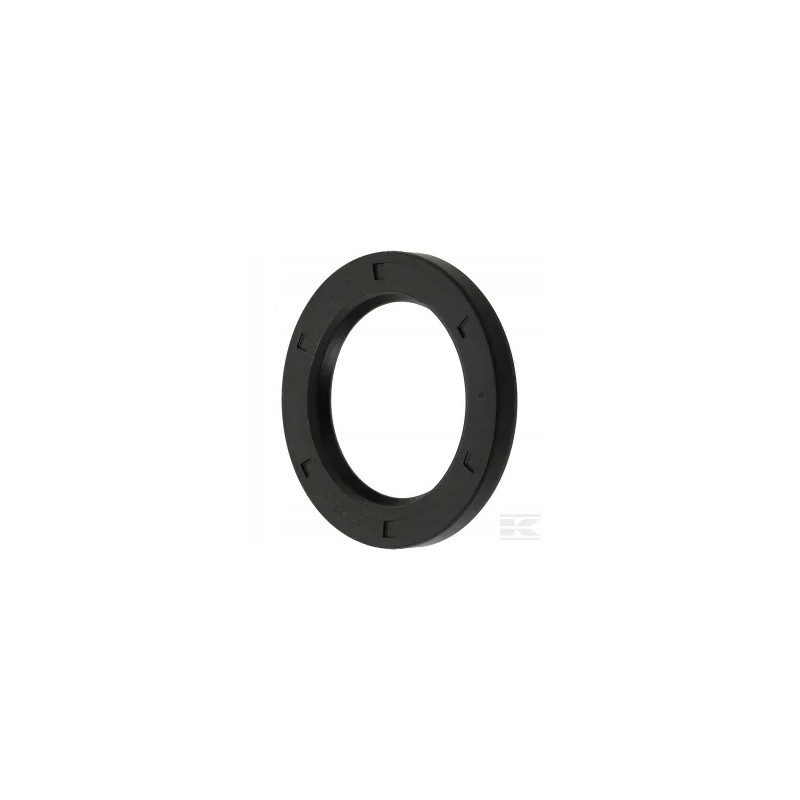

Ring simmering 3 1 4 x 4 x 5 16

Simmering ring, 3 1/4 x 4 x 5/16

Part number: K. 825510795793CBP001

EAN: 8716106209477

Unit: Art

Application: Sealing of rotating machine components Features:

The outer rubber casing compensates for elongations and unevenness on the surface of the housing opening

With a spring made of galvanized spring steel

Technical information:

CB: rubber jacket, without dust lip

CC: rubber jacket, with dust lip

BB: steel jacket, without dust lip

BC: steel jacket, with dust lip

DB: steel jacket, with reinforcement, without dust lip

DC: steel jacket, with reinforcement, with dust lip Type: CB

d1Inner diameter: 82.55mm

Inner Diameter: 3-1/4 inch

d2Outer diameter: 107.95mm

Outside Diameter: 4-1/4 inch

hWidth: 7.93mm

Width: 5/16 inch

Scraping edge: No

DIN standard: 3760

Working pressure max.: 0.5BAR Maximum shaft speed: 10m/s Scraping edge material: Nitrile rubber [NBR]

Spring material: Spring steel

Operating temperature min.: -35°C

Operating temperature max.: 100°C

Quantity in package: 1 pc.
