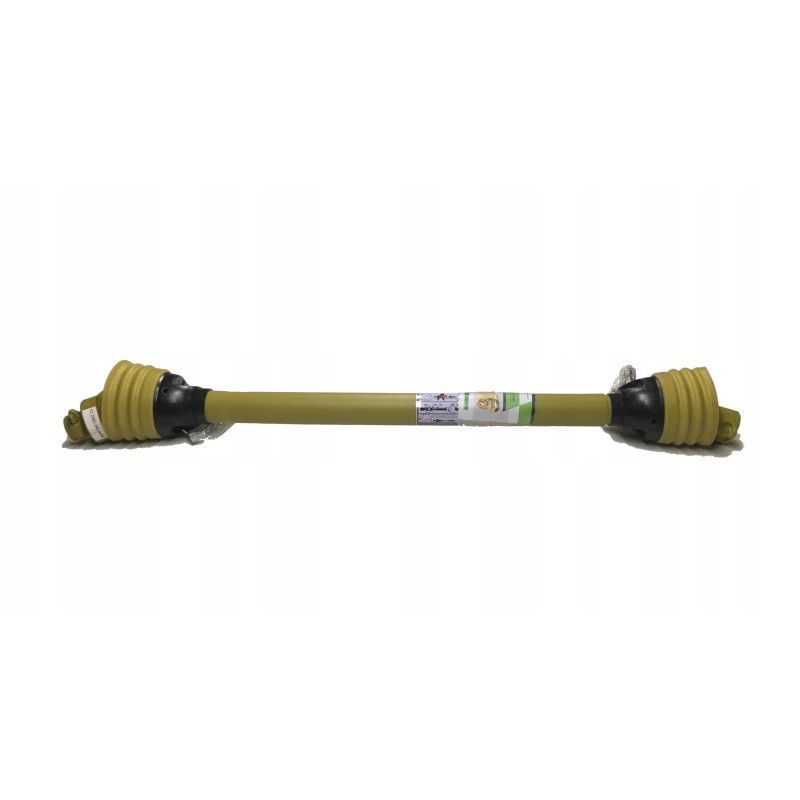

1210mm universal joint shaft, one-way clutch

The subject of the advertisement is:

Propshaft triangle 23.8x61.3 1210mm 270Nm one-way clutch

Manufacturer: EURO DRIVESHAFTS

Dimensions given in the technical drawing

Profile pipe - triangle

One-way clutch

Cross head: 23.8x61.3

Total length: 1210mm

Cross spacing: 1010mm

Tractor connection: 6 cutters 34.9mm (1 3/8')

Machine connection: 6 cutters 34.9mm (1 3/8')

Nominal power: 270Nm

The one-way clutch is designed to protect against excessive torque caused by the inertia of the agricultural machine, which occurs during braking and when the machine is completely stopped. A one-way clutch transmits torque in one direction only by engaging the pawls with the clutch housing. In the opposite direction, the clutch rotates freely.

The standard direction of the overrule clutch is clockwise.

The overrule clutch is always mounted on the side of the agricultural machine.

If we are unable to install the clutch on the machine side

due to design features or a different clutch is installed, you can

install the one-way clutch on the shaft on the tractor side.

We configure rollers according to customer needs
