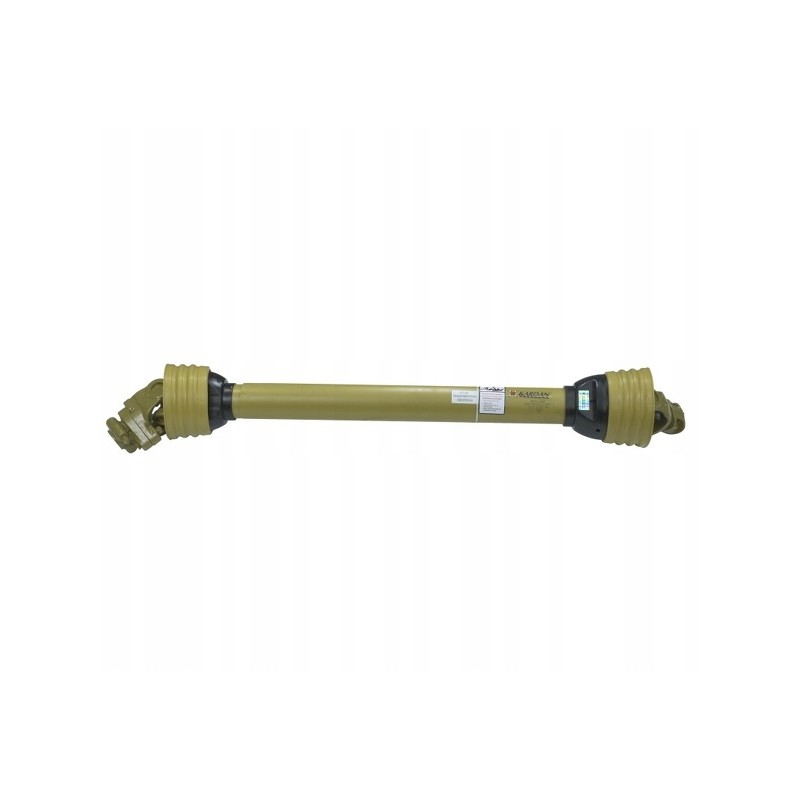

PTO shaft cutter 830nm 1010 1520mm pulley clutch

The subject of the offer is:

*Milled PTO shaft 830Nm, 1010-1520mm, cross 30x92, pin clutch * X Cardan

Characteristics:

Continuous operation torque : 830Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 30, 2x92mm

Tube profile: z-12

Inner shaft dimensions: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: side latch

Machine security: side latch

Clutch type: M10 pin 2100Nm

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 47kW

Torque at 540 rpm: 830Nm

Power at 1000 rpm: 74kW

Torque at 1000 rpm: 710Nm

Shaft length (from the axis of the crosshead to the axis of the crosshead):

minimum: 1010mm

maximum: 1520mm

*Principle of operation of the PTO clutch with pin: the connecting screw shears under the influence of load, disconnecting the drive. After the clutch engages, the screw must be replaced with a new one and the clutch continues to function.
