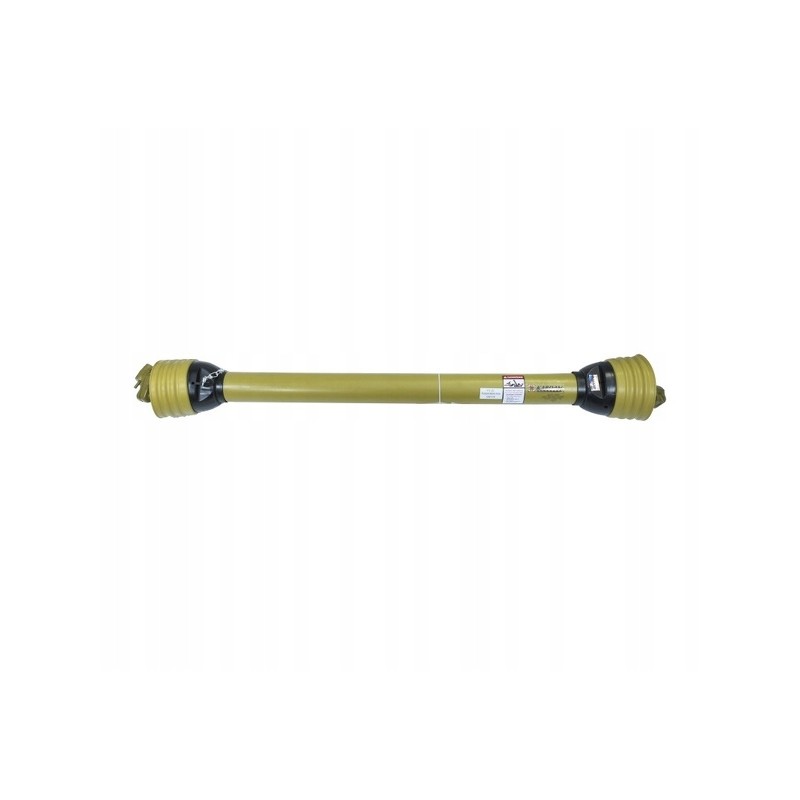

PTO shaft cutter 620nm 1210 1720mm pulley clutch

The subject of the offer is:

*Milled PTO shaft 620Nm, 1210-1720mm, cross 30x80, pin clutch * X Cardan

Characteristics:

Continuous operation torque : 620Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 30, 2x80mm

Tube profile: z-12

Inner shaft dimensions: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: side latch

Machine security: side latch

Clutch type: M10 pin 2100Nm

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 35kW

Torque at 540 rpm: 620Nm

Power at 1000 rpm: 54kW

Torque at 1000 rpm: 520Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 1210mm

maximum: 1720mm

*Principle of operation of the PTO clutch with pin: the connecting screw shears under the influence of load, disconnecting the drive. After the clutch engages, the screw must be replaced with a new one and the clutch continues to function.
