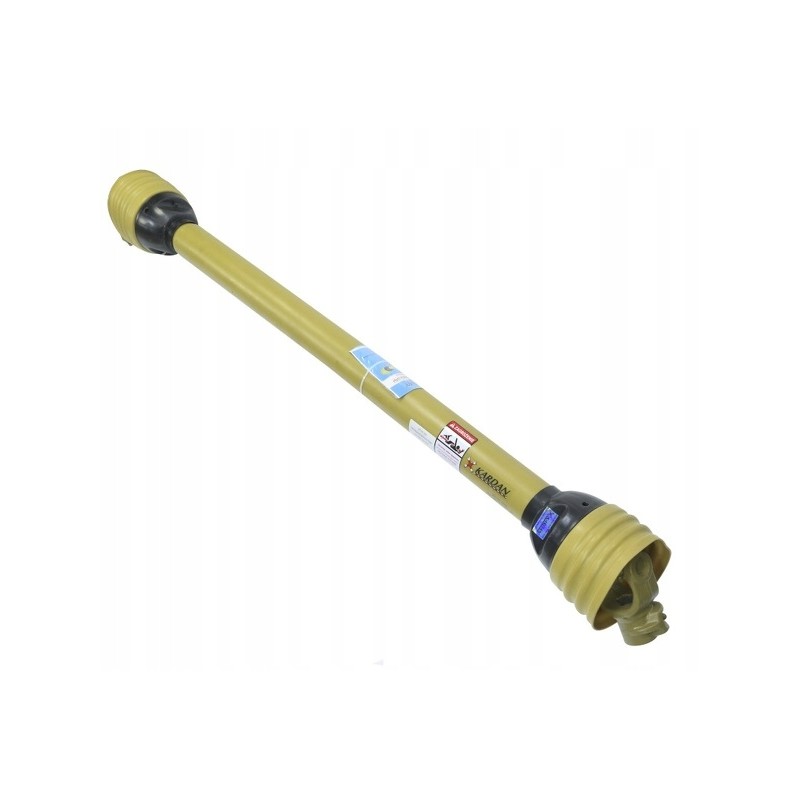

PTO shaft 460nm 1210 1900mm pulley clutch

The subject of the offer is:

*Triangular PTO shaft 460Nm, 1210-1900mm, cross 27x75, X-cardan pin clutch

Characteristics:

Continuous operation torque: 460Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74.6mm

Tube profile: triangle

Inner tube dimensions: 36x4.5mm

Outer tube dimensions: 43x3mm

Tractor protection: side latch< p>

Machine security: side latch

Clutch type: M8 pin 1400Nm

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 26kW

Torque at 540 rpm: 460Nm

Power at 1000 rpm: 40kW

Torque rotational at 1000 rpm: 380Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 1210mm

maximum: 1900mm

* Principle of operation of the PTO clutch with a pin: the connecting screw shears under the influence of load, disconnecting the drive. After the clutch engages, the screw must be replaced with a new one and the clutch continues to function.
