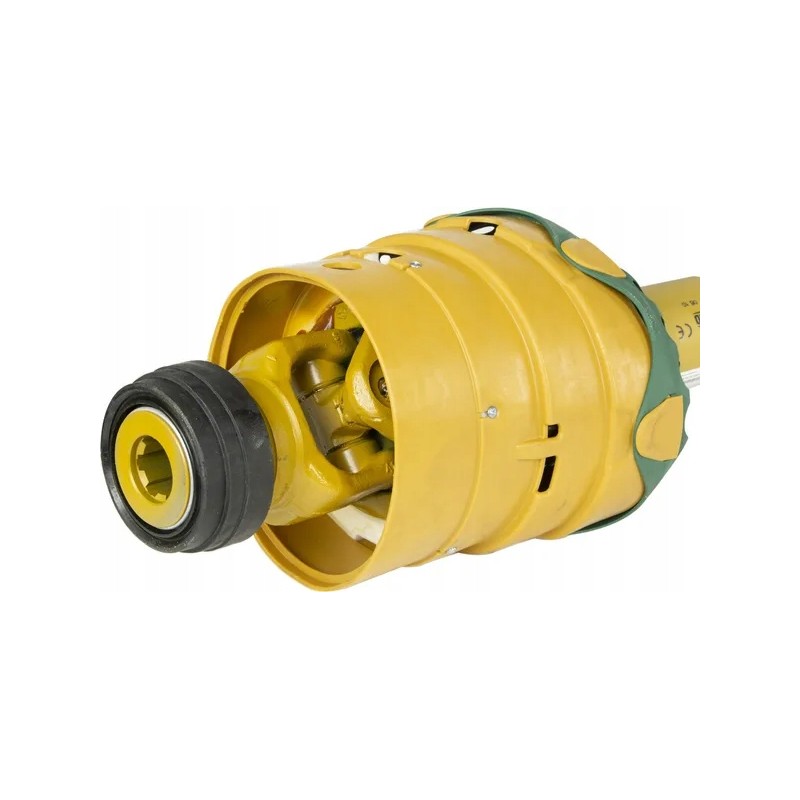

Wide angle joint shaft WWE 2580 l 1010 mm shaft

Wide-angle drive shaft WWE 2580 L=1010 mm Walterscheid

Part number: K. WWE25801010

EAN: 8435194030502

Unit: Piece

Product description:

WWE 2580 series 80° wide-angle drive shafts, 1-sided wide-angle with protective cover and declaration of conformity

and user manual. Fits spreaders, manure spreaders,

round balers, self-loading wagons, etc.

Product details:

Wide-angle drive shaft on one side with protective cover

Declaration of conformity

Instructions for the user

Tractor side: flange mounting, gate

Machine side: sliding pin

Frequency lubrication: 8 hours

Meets the requirements of EC directive 89/392/EEC

Meets the requirements of the EN12965 safety standard

Supplied with the "CE" mark

Deflection angle during long-term use max. 25°

The deflection angle can only be 80° for a short time

Max. dynamic power 540 rpm: 66kW - 1175Nm

Max. dynamic power 1000 rpm: 102kW - 975Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the center of the external cross

Application:

Wide spreader

Slurry barrel

Large size square baler

Silo trailer

Properties :

Tractor side: slider

Machine side: sliding pin

Lubrication interval: 8 hours

Compliance with the requirements of EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º for a short time

Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm

Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Connection type on the tractor side: Automatic flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection slots: 6

Machine side connection type: Clamping cone

Machine side accessories: Clamping yoke

Shaft size: WWE 2580

Length: 1010mm

Power at 540 rpm: 66kW

Power at 1000 rpm: 102kW

Diameter of the cross sleeve on the tractor side - longer part: 32mm

Diameter of the cross sleeve on the tractor side: 36mm

Length of the cross on the tractor side - longer part: 106mm

Length of the cross on the tractor side: 89mm

Sleeve diameter cross on the machine side: 36mm

Length of the cross on the machine side: 89mm

Coupling type: n/a

Outer pipe profile type: S5

Wall thickness of the outer pipe: 4.5mm

Larger diameter of the outer pipe: 61mm

Profile type of the inner pipe: S4GA

Outside diameter . larger inner tube: 51mm

Tube profile shape: Star

Max. static torque: 6000N m

Cover type: SD25

Reference number OE: 1610151

Additional information: Fork 361030 with clamping cone on the machine side.
