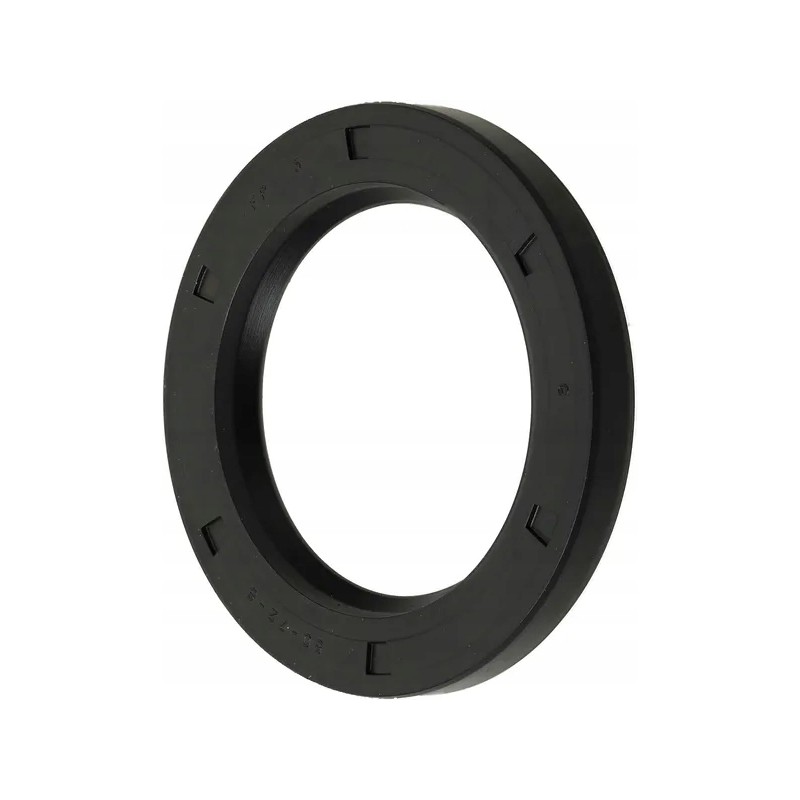

Ring simmering 45 x 65 x 10 viton

Simmering ring, 45 x 65 x 10, Viton

Part number: K. 456510CCVP001

EAN: 8716106219308

Unit: Art

Specifications:

Very high resistance to temperature and chemicals

Good resistance to aging and ozone

Application:

Sealing of rotating machine components

High ambient temperatures

Corrosive surroundings

Features:

Viton outer casing compensates for elongations and unevenness of the housing opening

With stainless steel spring

Technical information:

CB: rubber jacket, without dust lip

CC: rubber jacket, with dust lip

CBD: double shaft seal, rubber jacket, without dust lip

Benefits:

Wide range of applications

Longer service life

Type: CC

d1Inner diameter: 45mm

d2Outer diameter: 65mm

hWidth: 10mm

Scraping edge: Yes

DIN standard: 3760

Working pressure max.: 0.5BAR Maximum shaft speed: 35m/s Scraping edge material: Viton

Spring material: 304 stainless steel Operating temperature min.: -30°C

Operating temperature max.: 180°C

Quantity in package: 1 pc.
