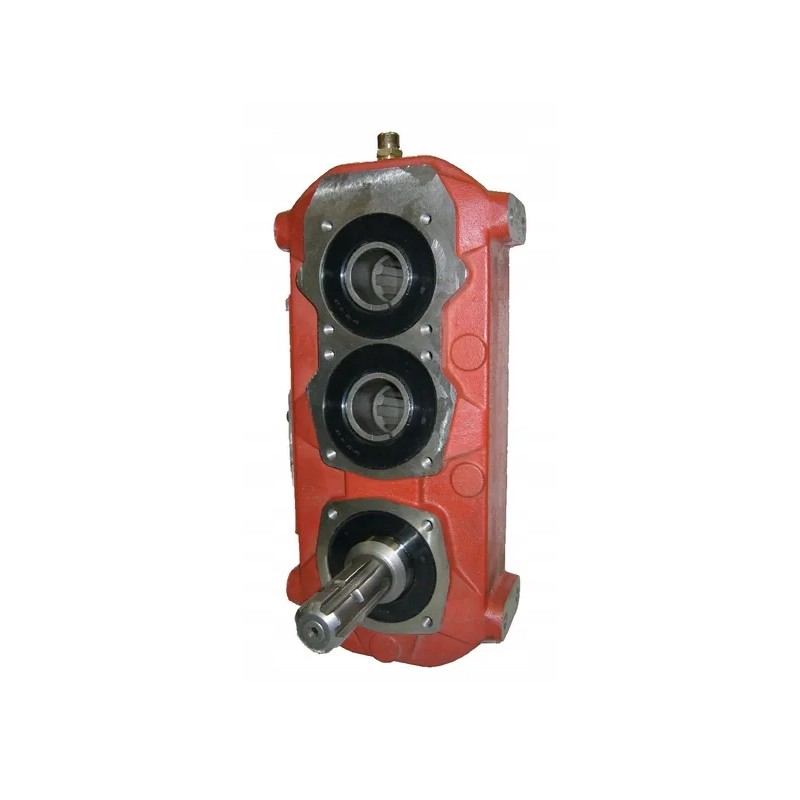

IMR type multifunction gearbox, 6 speeds

Multi-function gearbox type IMR 6, gear ratio 2:1 or 1:1 or 1:2

Part number: K. IMR6

EAN:

Unit: Piece

Specifications:

Possible gear ratio 2:1, 1:1 or 1:2

Maintain or reverse the direction of rotation possible

Product details:

The gearbox is delivered without oil, the oil must be refilled before the first start-up of the gearbox.

First oil change after 50-70 hours of operation, then after 500-700 hours of operation or at least once a year.

Application:

Agricultural applications

Front mounting devices

Properties: Grease filling: SAE 90EP 1.0 kg

Benefits: Wide range of applications

Maximum input speed: 1000 rpm

Consists of:

Gear

1 shaft 1-3/8' (6)

2 securing rings

Maximum input power: 44kW

Maximum output speed: 1080 rpm

Oil included: No

Housing material: Cast iron

Connection: 3 x hollow shaft 1 3/8 ' (6)
