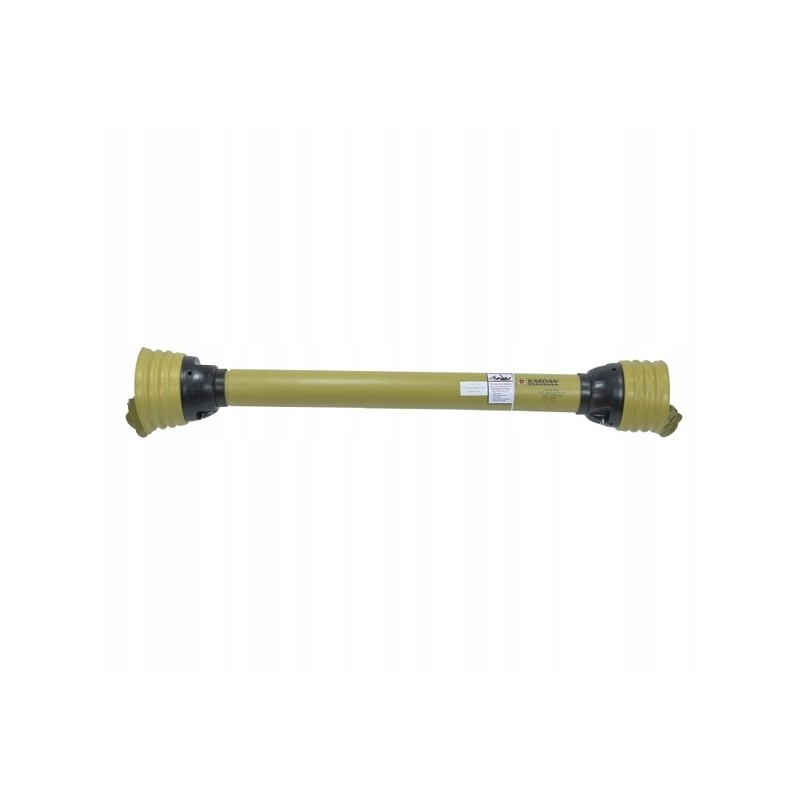

PTO shaft 575nm 1010 1570mm pulley clutch

The subject of the offer is:

*Lemon PTO shaft 575Nm, 1010-1570mm, cross 27x75, X-cardan pin clutch

Characteristics:

Continuous operation torque: 575Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74.6mm

Tube profile: lemon

Inner tube dimensions: 39.5/49/5mm

Outer tube dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: M8 pin 1400Nm

Operating angle: max. 25° ( momentary max. 45°)

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm : 52kW

Torque at 1000 rpm: 450Nm

Shaft length (from the axis of the crosshead to the axis of the crosshead):

minimum: 1010mm

maximum: 1570mm

* Principle of operation of the PTO clutch with pin: the connecting screw shears under the load, disconnecting the drive. After the clutch engages, the screw must be replaced with a new one and the clutch continues to function.
