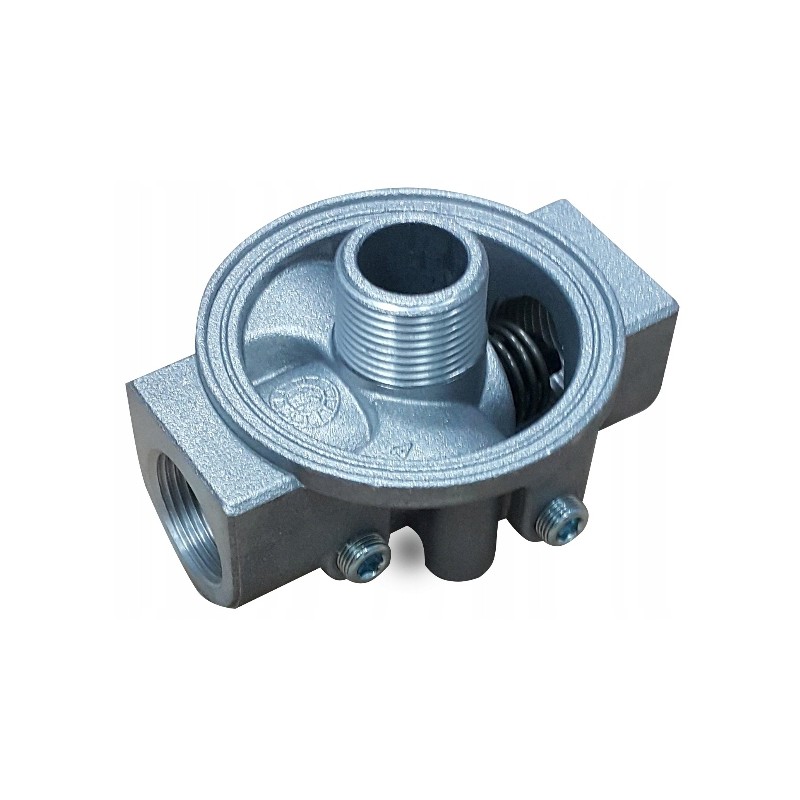

Head 3 4 of the hydraulic suction filter 40 60 80 l

OIL FILTER head with a flow of 40, 60, 80L/min SKRAW-MET CODE: [1320] Filter installed in external hydraulic systems, on the return line.

It has a very wide range of applications in hydraulics, protecting delicate components of the set, such as the pump and the distributor, against damage .

DIMENSIONS - 3/4'

A II - 3/4'

D -43mm

E -95mm

F - 75.5mm

H - M8

I - 1/8' bspp

Technical specification: Internal thread (with both sides): 3/4'

flow: 40 L/min - oil with a density of 30 CST (equivalent to HL 30)

Max. pressure: 12bar

Burst pressure: 25bar

Bypass valve pressure: 1.7bar

We recommend selecting filters with a relatively higher flow than required in a given hydraulic system.

The reason for this is that the use of thick oil or quite low, negative temperature may cause flow reduction by up to 40%
