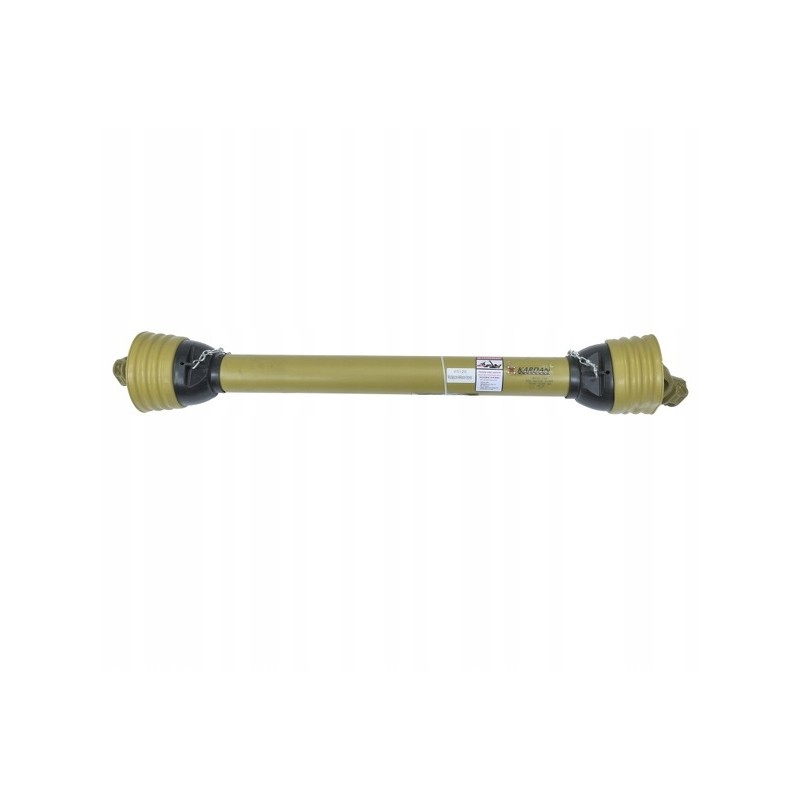

Power transmitter shaft milled 620nm 1010 1520mm

The subject of the offer is:

*Milled PTO shaft 620Nm, 1010-1520mm, cross 30x80 * >

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 30.2x80mm

Tube profile: z-12

Inner shaft dimensions: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: side latch

Machine protection: side latch

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 35kW

Torque at 540 rpm: 620Nm

Power at 1000 rpm: 54kW

Torque at 1000 rpm: 520Nm

Shaft length (from the D-shaped axis to the D-shaped axis):

minimum: 1010mm

maximum: 1520mm
