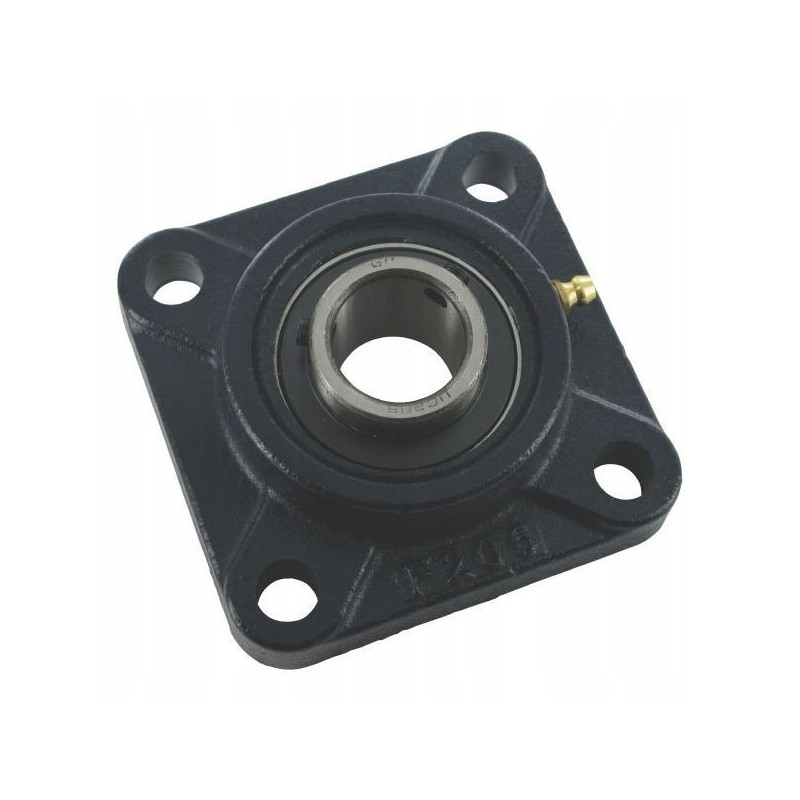

Ucf206gp bearing with square housing, complete

Bearing with square housing, complete INDEX: UCF206GP

Part number: UCF206GP

Unit: piece

Technical information: - Note: color may differ from the image

Features: - The inner bearing has an inner ring extended on both sides with 2 adjustment screws

Total height: 40.2 mm

Diameter of mounting holes: 12mm

Housing type: Square flange

d Inner bearing diameter: 30 mm

a Total length: 108 mm

l Housing height: 31 mm

Bi Bearing inner ring width: 38.1 mm

Position of the bearing balls relative to the end of the shaft/shaft: 18 mm

l Location bearing balls relative to the mounting surface: 15.9mm

e Spacing of mounting holes: 83mm
