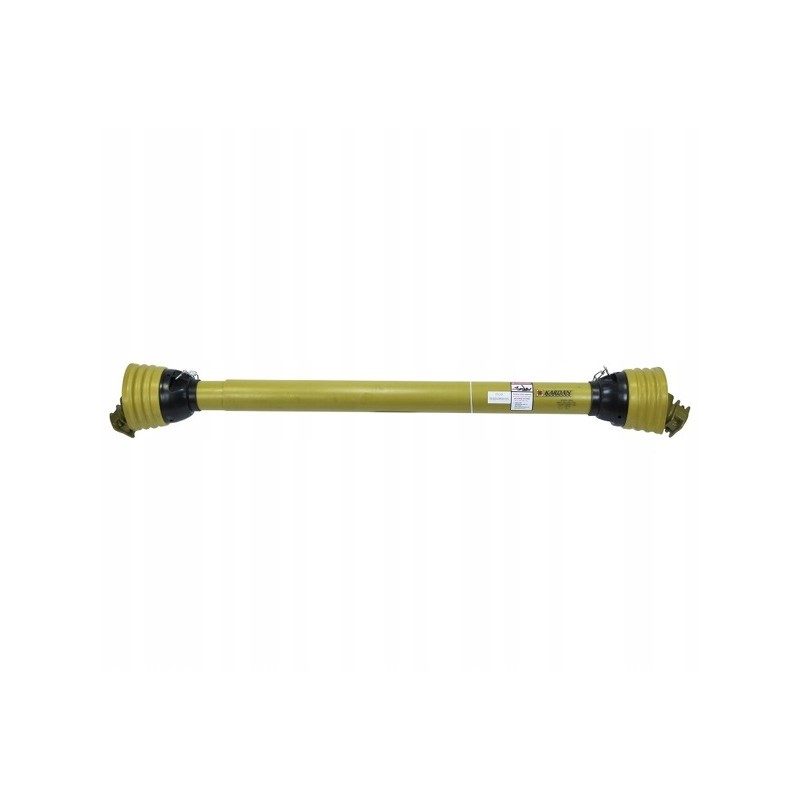

Power transmission shaft of PTO shafts 695nm 1210 1890mm

The subject of the offer is:

*Lemon PTO shaft 695Nm, 1210-1890mm, cross 32x76

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 32x76mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection : side latch

Machine security: side latch

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 39kW

Torque at 540 rpm: 695Nm

Power at 1000 rpm: 61kW

Torque at 1000 rpm: 580Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 1210mm

maximum: 1890mm
