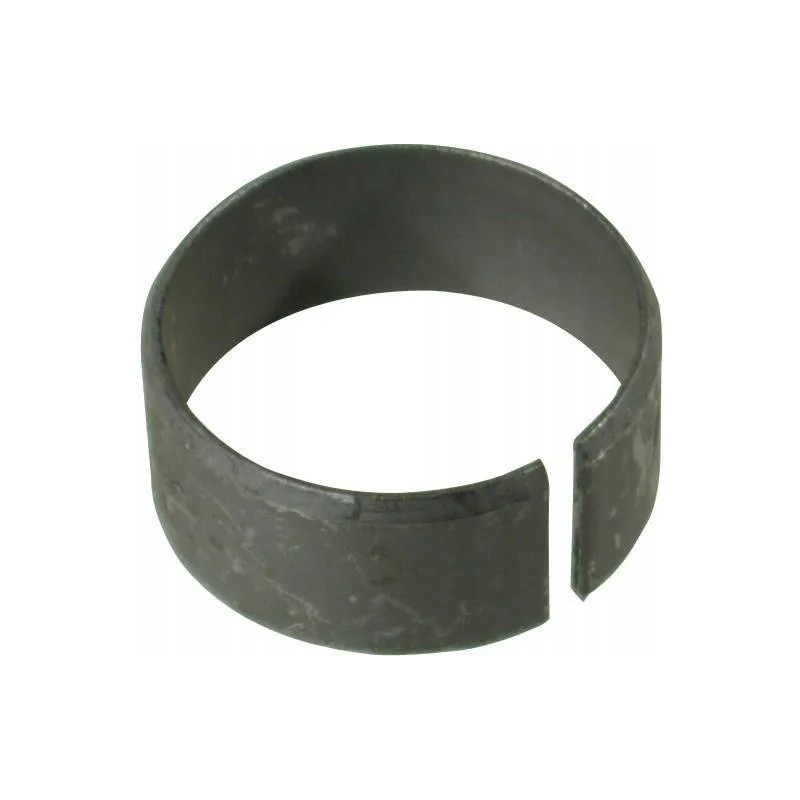

Kramp spring sleeve, 35x43x40 mm, steel, DIN 1498
Part number: K. 1498354340
EAN: 8719607112666
Unit: Art
Product description: Spring bushing for use as a stop element, made of rolled and hardened spring steel, DIN 1498. Spring bushings are ideal for applications where high loads and low speeds occur, under severe conditions, without lubrication. They have conical ends for easy assembly and disassembly. Spring sleeves are pressed into the hole so that the gap is not in the load zone, but is offset by approximately 90° in relation to the direction of force. Show more
Product details: Dimensions = internal Ø x external Ø x length
D outer diameter: 43mm
dInner diameter: 35mm
Length: 40mm
Material: Steel
DIN standard: 1498
Quantity in collective packaging: 10 pcs.
Material: Steel
