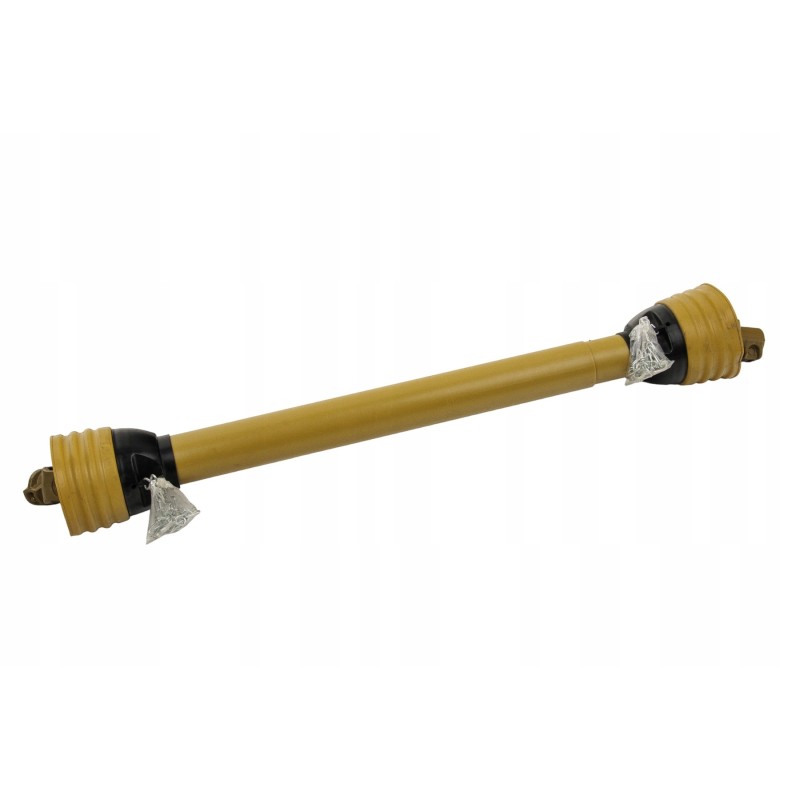

PTO power transmission shaft 620nm 1010 1520mm

Milled PTO shaft 620Nm MIZAR number: 76642

Milled PTO shaft 620Nm 1010-1520mm 6 cutters

Fork machine: 1 3/8 inch - 6 cutters

Isosceles cross: 30.2x80mm

Pipe profile: z-12

Dimension of the inner shaft: 40mm

Dimension of the outer tube: 58x3mm

Tractor protection: side latch

Machine protection: side latch

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 35kW

Torque at 540 rpm: 620Nm

Power at 1000 rpm: 54kW

Torque at 1000 rpm: 520Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head): 1010-1520mm

Manufacturer: X Kardan

MIZAR number: 76642
