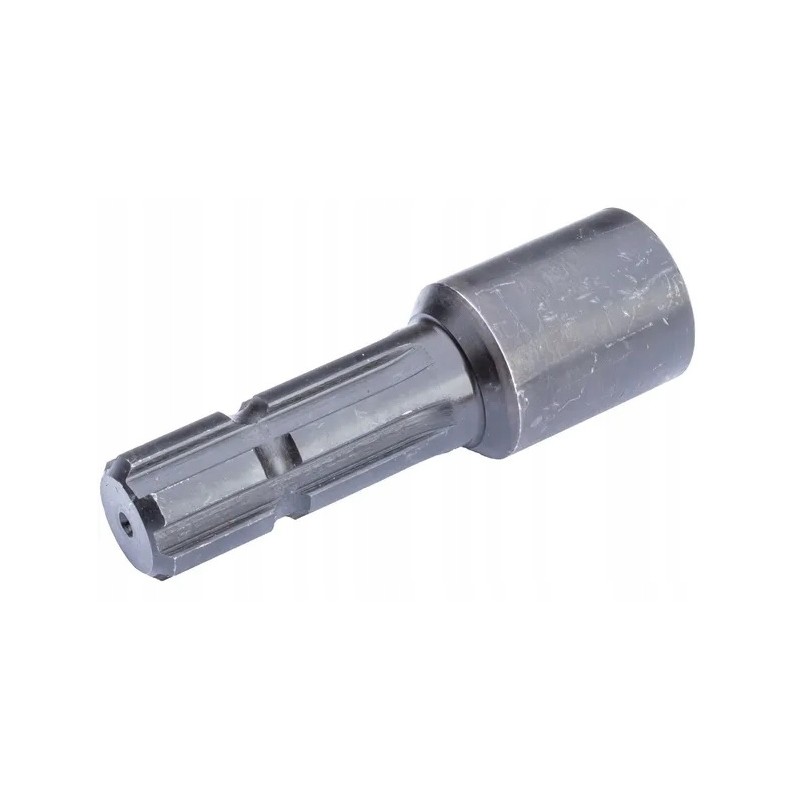

Reduction of the PTO shaft shaft to the wedge fi30 internal 1 3 8 6

Reduction of the PTO shaft to the wedge Manufacturer KRAMP Properties Max. 5% of white rust after a 72-hour test for resistance to sea water and salt fog according to ASTM B117-97

It cannot be used in the main drive between the tractor and the machine.

Power max. 30 kW

Outer diameter of connection from side 1 1-3/8 inch

Number of cutters for connection No. 1 6

Total length 160 mm

Inner diameter mounting 30 mm

Outer diameter 50 mm

Width of keyway/wedge 8 mm

Material Steel S355

Note To be used only on the machine side.
