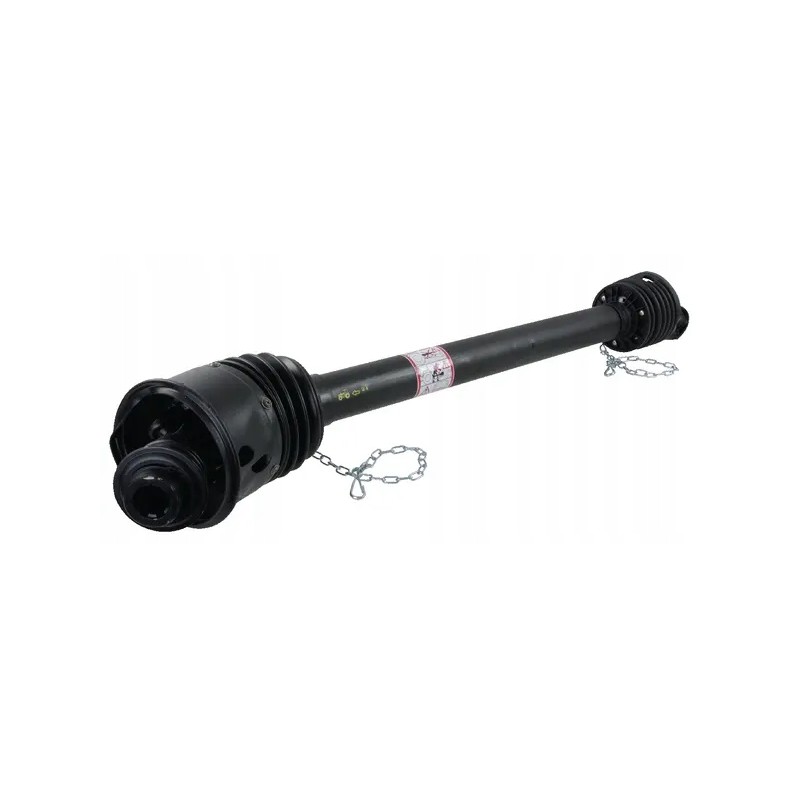

Wide angle joint shaft g4 l 1210 mm bondioli

PTO shaft, wide angle G4 L=1210 mm Bondioli&Pavesi

Part number: K. 7G4R121CEWR7007

EAN:

Unit: Piece

Application :

Manure spreader

Feeder wagon

Steer

Forage wagon

Round balers

Properties:

Improved protection concept

Optimized cross elements with needle bearings equipped with double-edge sealing rings

Optimal accessibility to all grease nipples

(all grease nipples are in one line)

Technical information: CE mark

Benefits:

Lubrication intervals extended to 50 hours

Easy maintenance

High reliability and low specific power load

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Shaft size: G4

Length: 1210mm

Power at 540 rpm: 26kW

Power at 1000 rpm: 40kW

Diameter of the cross sleeve on the tractor side: 27mm

Length of the cross on the tractor side: 74.6mm

Diameter of the cross bush on the machine side: 27mm

Length of the cross on the machine side: 74.6mm
