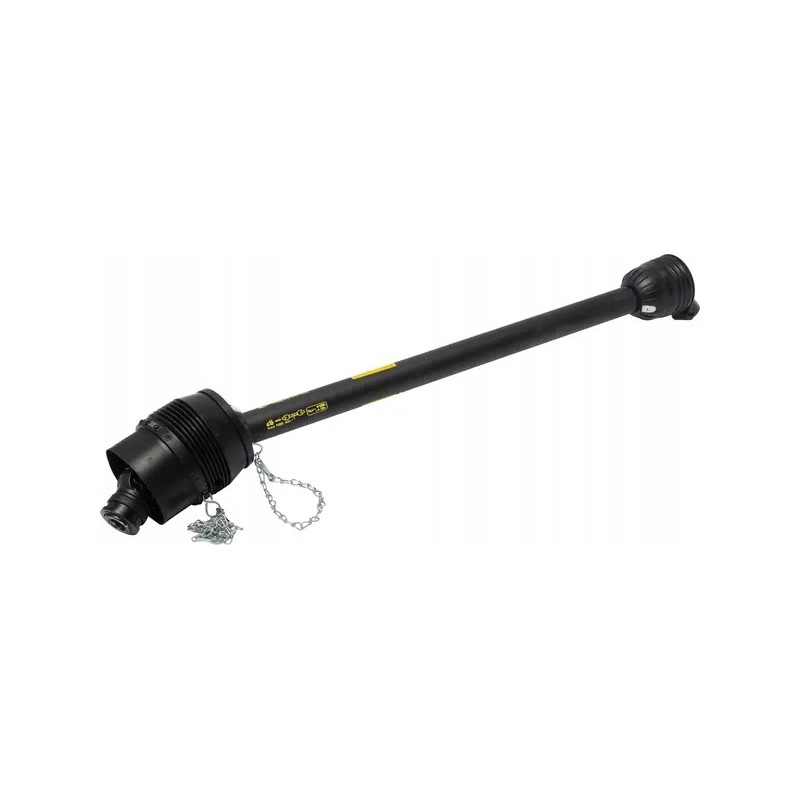

Wide angle joint shaft t cvj 80 l 1210 mm

Wide angle joint shaft T CvJ 80 L=1210 mm shear pin clutch, Comer

Part number: K. T801210ENC02B02

EAN:

Unit: Piece

Outer diameter of the tractor-side connection: 1-3/8 inch

Number of keys on the tractor-side connection: 6

Type of tractor-side connection: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection slots: 6

Machine-side connection type: Push-in pin

Machine-side accessories: Shear pin coupling

Shaft size: T CvJ 80

Length: 1210mm

Power at 540 rpm: 70kW

Power at 1000 rpm: 110kW

Diameter of the cross sleeve on the tractor side - longer part: 35mm< p>

Diameter of the cross bush on the tractor side: 35mm

Length of the cross on the tractor side - longer part: 113.8mm

Length of the cross on the tractor side: 106.3mm< p>

Diameter of the cross sleeve on the machine side: 35mm

Length of the cross on the machine side: 106.5mm

Clutch type: B02

Torque couplings max.: 3500N m

Outer pipe wall thickness: 3.7mm

Larger outer diameter of the outer pipe: 63mm

Inner pipe wall thickness: 5 .3mm

Larger outer diameter of the inner pipe: 54.6mm

Pipe profile shape: Triangular

Maximum dynamic torque: 2250N m

Reference number OE: 78811210EN00304104
