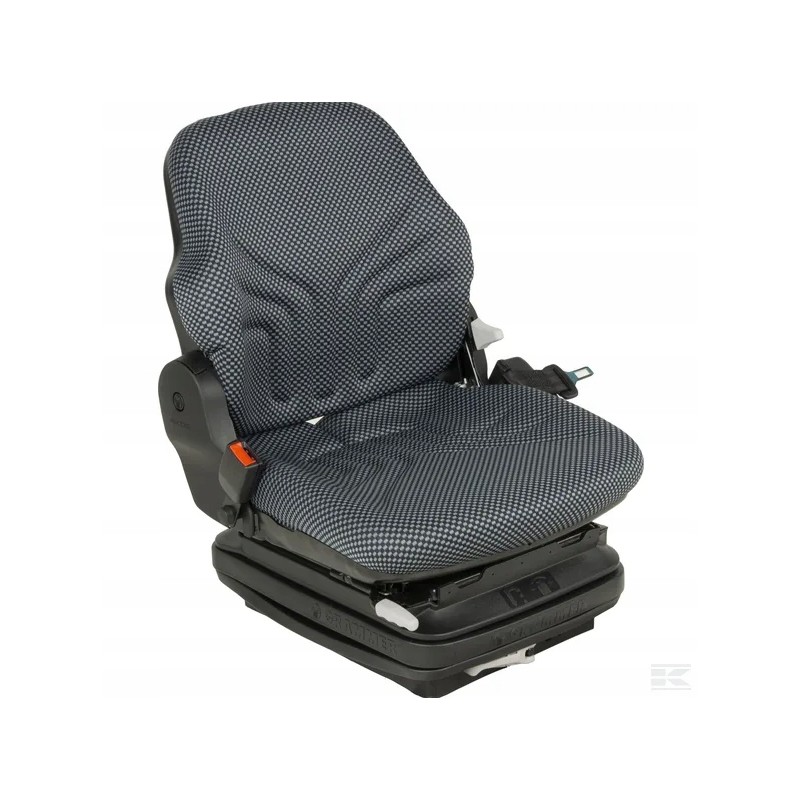

Grammer seat maximo m

Part number: G1292206

Unit: Piece

Specifications: Mechanical seat with scissor suspension and hydraulic damper

Application: Forklifts and construction machinery

Properties:

Seat width: 480 mm

Spring deflection 80 mm

Height adjustment 60 mm, 3-stage mechanical

Longitudinal adjustment 210 mm

Adjustment depending on body weight 50 - 130 kg

Weight 35.3 kg

Backrest inclination adjustment up to 35°

Horizontal suspension

Benefits:

Provides optimal seating comfort in the smallest possible space

Effectively prevents damage to intervertebral discs.

Suspension type: Mechanical

Upholstery material: Fabric

Upholstery color: Black

Total width: 480 mm

Consists of:

Seat without mechanically adjustable lumbar support

Without armrests

Without headrest

Armrests included: No

Headrest included : No

Seat belts included: Yes

Seat contact switch: Yes

Auto-adjustment to user's weight: No

Model: MSG85 /721

Backrest angle adjustment: 30 °

Height adjustment: 6 cm

Depth: 608 mm

Working load min. : 50 kg

Suspension travel: 8 cm

Max working load: 130 kg

Fits machine/vehicle models: MSG 85 / 721

Total height: 701 mm

Heated: No

Total length: 608 mm
