Case new holland rod angle joint m24x1 5

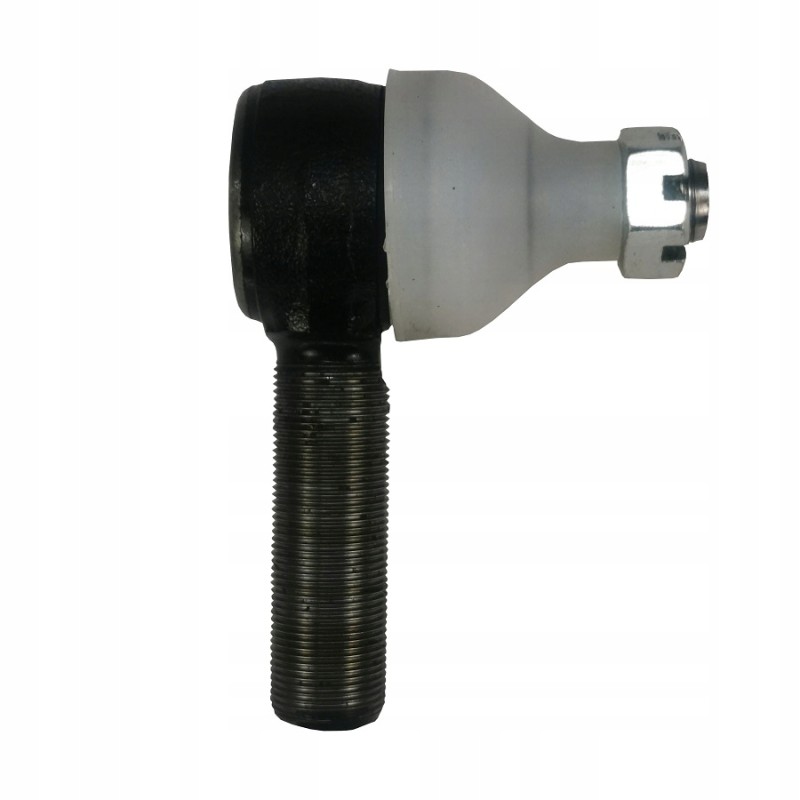

Rod angle joint Case, New Holland Laverda M24x1.5 ANDORIA MOT

ANDORIA-MOT

Case, New Holland Track rod end ANDORIA MOT joints are rod ends made of the highest quality forgings with the precision of first assembly.

The ball used in them was hardened and subjected to a grinding process.

The cover is oil and ozone resistant - it will not crack and will protect sensitive elements for a long time.

The most modern designs do not require lubrication - ANDORIA MOT joints do not have a grease nipple, thanks to this technology they are reliable and easier to use.

Thanks to the use of the latest technologies, they are characterized by long service life and smooth operation, which guarantees user comfort.

ANDORIA MOT joints are the best choice for the Polish Farmer.

Technical data:

* Total length - 130 mm

* Length from the center of the head - 105 mm

* External thread - M24x1.5 / M18x1.5

* Cone - 20 - 22 mm

* Complete with nut and cotter pin

Application:

* Case:

2130, 2140, 433, 533 (APL1251), 633, 733, 833 (APL1251), 440, 540 (APL1251), 640 (APL1251), 740 (APL1251), 840 (APL1251), 940 (APL1251), 743 (AP) L1351 ), 743XL (APL1351), 644, 744, 844, 844S (APL1351), 844XL (APL1351), 745S (APL3052), 745XL (APL3052), 845, 856 (APL3052), 856XL (APL3052)

JX - 55, 60, 65, 70, 75, 80, 85, 90, 95

MXM - 120, 130, 140, 155, 175, 190

MXU - 100, 110, 115, 125, 130, 135

Maxxum - 5120, 5130, 5140, 5220, 5230, 5240, 5250

VJ - 70, 80

* Claas / Renault

1151-4, 751-4 (>,81029), 851-4, 951-4

* Deutz:

2505 (4WD), 3005 (4WD), 4005 (4WD), 4505 (4WD), 5005 (4WD), 5505 (4WD), 7505 (4WD), 7505F (4WD), 7505U (4WD), 9005 (4WD), 9005F (4WD), 9005U (4WD), 10006 (4WD), 10006F (4WD), 10006U (4WD), 13006 (4WD), 16006 (4WD), 2506 (4WD), 3006 (4WD), 3006F (4WD), 4006 (4WD), 4006F/S (4WD), 4006U (4WD), 4506 (4WD), 4506F (4WD), 4506US (4WD), 5006 (4WD), 5006F (4WD), 5006U (4WD), 5206 (4WD) ), 5206F (4WD), 5206U (4WD), 5506 (4WD), 5506F (4WD), 5506U (4WD), 6006 (4WD), 6006F (4WD), 6006U (4WD), 6206 (4WD), 6206F (4WD ), 6206U (4WD), 6806 (4WD), 6806F (4WD), 6806U (4WD), 7006 (4WD), 7006F (4WD), 7006U (4WD), 7206 (4WD), 7206A (4WD), 7206F (4WD ), 7206U (4WD), 7506 (4WD), 7506F (4WD), 7506U (4WD), 8006 (4WD), 8006F (4WD), 8006U (4WD), 9006 (4WD), 9006A (4WD), 9006F (4WD ), 9006U (4WD), 2807 (4WD), 3607 (4WD), 3607F (4WD), 4007 (4WD), 4007F (4WD), 4007U (4WD), 4507 (4WD), 4507A (4WD), 4507F (4WD ), 4807 (4WD), 4807A (4WD), 4807F (4WD), 5207 (4WD), 5207A (4WD), 5207F (4WD), 6007 (4WD), 6007A (4WD), 6007F (4WD), 6207 (4WD ), 6207A (4WD), 6207F (4WD), 6507 (4WD), 6507A (4WD), 6507F (4WD), 6807 (4WD), 6807A (4WD), 6907 (4WD), 7007 (4WD), 7007A (4WD ), 7207 (4WD), 7207A (4WD), 7807 (4WD), 7807A (4WD)

Agroprima 6.06 (4WD) - 4507C (4WD), 4807C (4WD), 5207C (4WD), 6007C (4WD), 6207C (4WD), 6507C (4WD), 6807C (4WD), 6907C (4WD), 7007C (4WD) , 7207C (4WD), 7807C (4WD)

D

40 (4WD), 50 (4WD)

DX - 110 (4WD), 110A (4WD), 120 (4WD), 120A (4WD), 80 (4WD), 80A (4WD), 85 (4WD), 85A (4WD), 86 (4WD), 86A (4WD) ), 90 (4WD), 90A (4WD), 92 (4WD), 92A (4WD)

DX4 - 4.10 (4WD), 4.30 (4WD), 4.50 (4WD), 4.70 (4WD)

DX6 - 6.05 (4WD)

* Fendt:

Farmer 100 - 102, 103, 104, 105, 106LS, 106LSA, 106S, 106SA, 108LS, 108LSA, 108S, 108SA

Farmer 300 C - 307 (2WD + 4WD), 308 (2WD + 4WD), 309 (2WD + 4WD)

Farmer 300 LS(A) - 303 (2WD + 4WD), 304 (2WD + 4WD), 305 (2WD + 4WD), 306 (2WD + 4WD), 308 (2WD + 4WD), 309 (2WD + 4WD), 310 (2WD + 4WD), 311 (2WD + 4WD)

Farmer 300 TURBOMATIK - 307 (2WD + 4WD), 308 (2WD + 4WD), 309 (2WD + 4WD), 310 (2WD + 4WD), 311 (2WD + 4WD)

Farmer Classic - 5S

* Fiat:

1000 series - 1180, 1180DT, 1280, 1280DT, 1380, 1380DT, 1580, 1580DT, 1880, 1880DT

66 Series - 60-66F, 60-66FDT, 70-66DT, 70-66DT HC, 70-66F, 70-66FDT, 70-66SDT, 70-66SDT HC, 70-66V, 80-66, 80-66DT, 80 -66F, 80-66FDT, 80-66SDT, 80-66SDT HC

88 series - 70-88DT, 80-88DT

90 Series - 100-90DT, 110-90DT (Série 2), 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 160-90, 160-90DT, 180-90 , 180-90DT, 180-90DT (LA), 70-90DT, 80-90DT, 90-90DT

M series - 100, 115, 135, 160

Winner Series - F120, F120DT, F130, F130DT, F140, F140DT

* Ford:

8630 (LA), 8830 (LA), 8240, 8340, 8160, 8260, 8360, 8560

Forage harvester 7840

* John Deere:

3120, 1830, 2030, 2130, 3030, 3130, 1640, 1840, 2040 (>,35000), 2040, 2040S, 2140, 2240 (>,35000), 2650, 2850 TSS

* LAVERDA Combine:

AL519, L500, L517, L521, L524, L600, L624, L626, TL58 I

* New Holland:

T4.105 F, T4.75 F, T4.85 F, T4.95 F

Deluxe T4000, T4020, T4030, T4040, T4050, T4000F, T4030F, T4040F, T4050F, T4060F

T7 Auto Command

T7.170AC

TD series - 60, 70, 80, 90, 95

TD series - 55D, 60D, 65D, 70D, 75D, 80D, 85D, 90D, 95D

TM series - 115, 120, 125, 130, 135, 140, 150, 155, 165, 175, 190

TN Series - 65F, 70F, 75F, 80F, 90F, 95F, 75FA, 85FA, 95FA, 65N, 75N, 70NA, 75NA, N95NA ,55S, 65S, 70S, 75S, 60SA, 70SA, 75SA, 85SA

TS Series - 100A Delta, 100A Deluxe, TS100A Plus, TS110A Delta, TS110A Deluxe, TS110A Plus, TS115A Delta, TS115A Deluxe, TS115A Plus, TS125A Deluxe, TS125A Plus, TS130A Delta, TS135A Deluxe, TS135 A Plus

TT series - 55, 65, 75

* Same:

Galaxy 170 (4RM)

Laser Series - 100 (4RM), 110 (4RM), 130 (4RM), 150 (4RM), 90 (4RM)

Titan Series - 160 (4RM), 165 (4RM), 190 (4RM)

* Valmet/Valtra:

505, 605, 655, 702, 702S, 703, 705, 755, 802, 803, 805, 855, 903, 905

Catalog number:

- 25743454AM

- 25743454

- 0.257.4345.4

- 02311220

- 133700430727

- 1390431003

- 1531204C1

- 1927615ZP

- 2311220

- 25743454

- 3 217 279 R1

- 3217279R1

- 3217282R1

- 3221931R91

- 3427685M1

- 3427685M2

- 3427685M3

- 3427685M93

- 3475543M91

- 5117314

- 720886

- 827482

- 8395648

- 8514033

- 8514039

- 87395648

- 87442533

- 87542553

- 87569194

- 87714457

- 87825123

- 9295776

- AL110074

- AL177930

- AL26880

- AL27532

- AL32889

- AL37504

- AL38645

- AL82826

- B514033

- B514039

- DE16221

- E6NN3289AA

- E6NN3290AA

- E6NN3A300AA

- F138314020330

- FA5117314

- FT5117314

- G45368

- H3217279R1

- H3217282R1

- K262809

- K262888

- LA5117314

- MC3217279R1

- V720886

- V827482,

- X800.210.023.000

- X800210023000

Product features:

* Manufacturer ANDORIA-MOT

* Highest quality

* 3-year warranty

Alternative names:

- Tie rod end

- Steering rack ball joint

- Steering tip

- Steering knob
