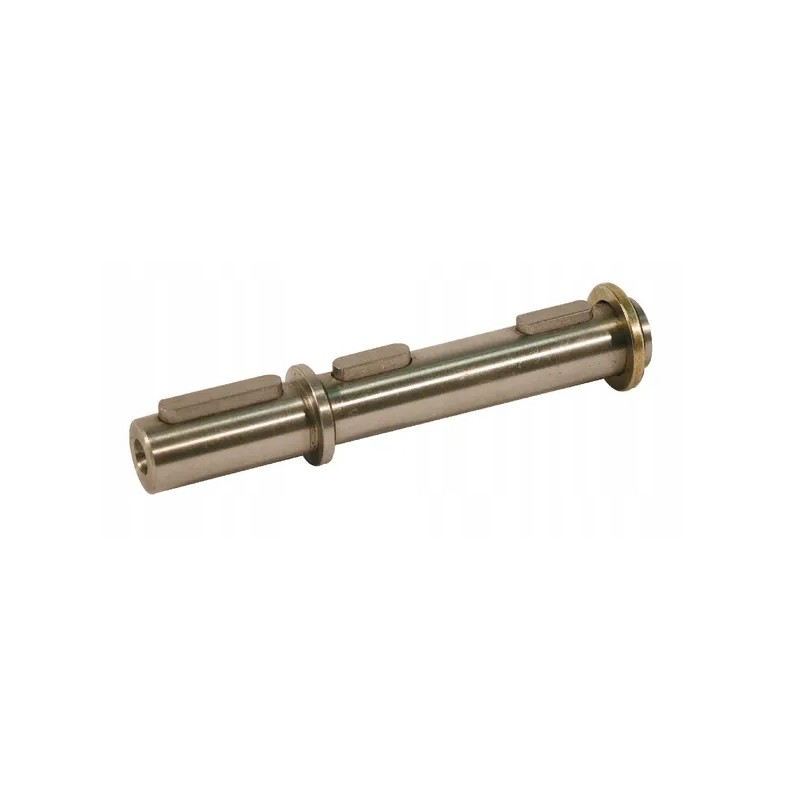

Single output shaft 35 mm

Single output shaft 35MM

Part number: K. GMR909035E

EAN: 8719607304962

Unit: Art

Application: Fits GMR/GR

reducers Features: The shaft can be mounted directly in a hollow shaft.

Application:

Straight output shaft

The presented shaft can be mounted directly into the hollow shaft of our worm gear, which will thus become the output shaft. With this single-sided shaft it is possible to mount a chain wheel or a gear wheel.

d Diameter fit: 35 h6mm

t1GA: 38mm

b1Key: 10mm

B1 Length B2: 84.5mm

G1 Length, housing: 140mm

Length, shaft: 80mm Total length: 234mm

fSecurity hole: M 12

Total length: 234mm
