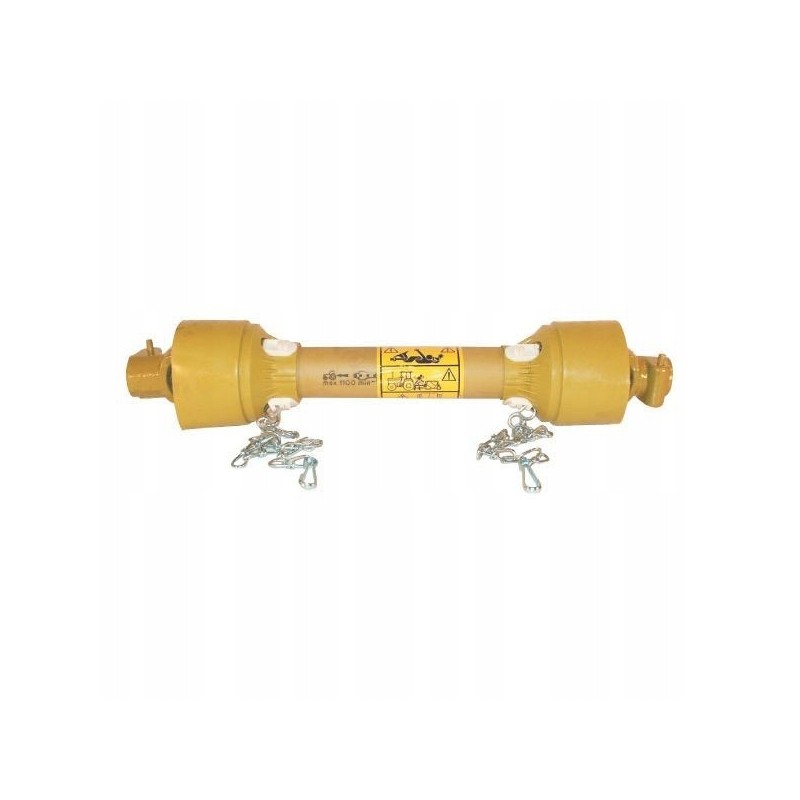

T400810enc12c12 joint shaft t40 series l 810 mm

PTO shaft T40 series, L-810 mm 460 Nm Comer INDEX: T400810ENC12C12

Length: 810mm

Technical information: - Follow the Comer operating instructions - Max. dynamic power 540 rpm : 26 kW, 460 Nm- Max. dynamic power 1000 rpm: 40 kW, 380 Nm- Values at a deflection angle of 5° and a service life of 1000 hours

Properties: - Lubrication frequency: 8 hours- Occurs CE marking

Application: - Seeders - Combine harvesters for harvesting root crops - Mowers

Diameter of the cross bush on the machine side: 27mm

Diameter of the cross bush on the tractor side: 27mm

Number of grooves on the tractor side: 6

Outside diameter of the tractor side connection: 1-3/8 inch

Shaft size: T40

Power at 540 rpm: 26kW

Length of the cross on the machine side: 74.6mm

Length of the cross on the tractor side: 74.6mm

Outer diameter of the machine side connection: 1-3/8 inch

Number of machine side connection grooves: 6

Power at 1000 rpm: 40kW

Type of connection on the tractor side: Flange gate valve

Connection type on the machine side: Flange gate valve

Accessories on the machine side: Quick-connect fork

Accessories on the tractor side: Fork quick connect

Outer pipe wall thickness: 3.4mm

Outer pipe larger diameter: 43.5mm

Inner pipe wall thickness: 4.5mm

Major external diameter of the inner tube: 36mm

Max dynamic torque: 780N m

OE reference number: 07.425.021.11

Shape pipe profile: Triangular
