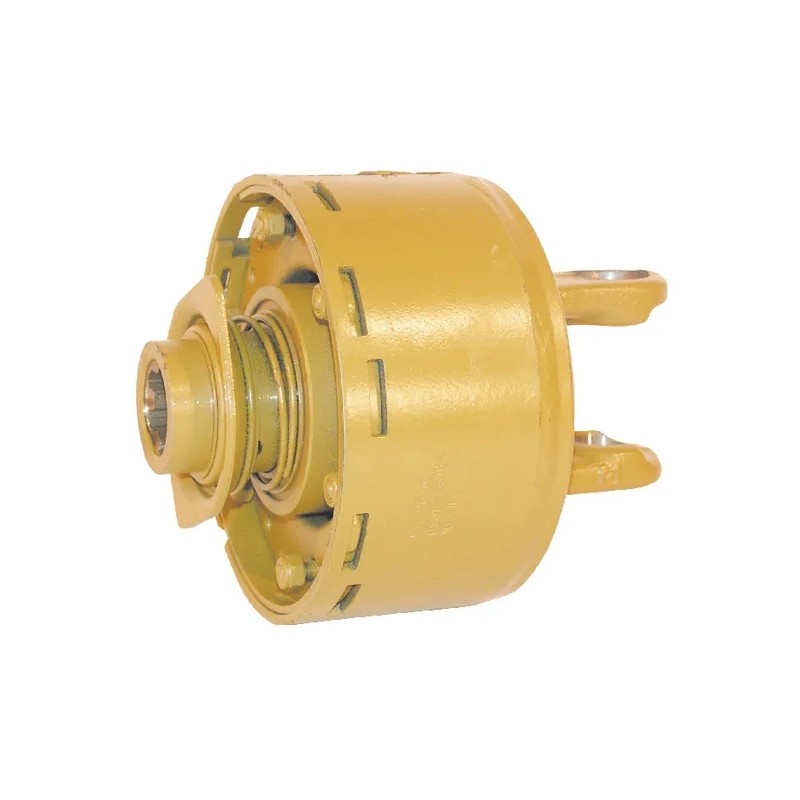

Friction clutch walterscheid fk96r 1 3 8 z6 se

Friction clutch, Walterscheid, FK96R, 1 3/8 Z6, W2300 series

Part number: K. 5810750105

EAN: 8432970155855

Unit: Piece

Specifications:

Combination of overrunning clutch with friction disc clutch

catches short-term load peaks

protection of inertial masses

max. torque adjustable with a locking ring

Application:

Balers for large loads

balers

lawn mowers

Properties:

Depending on the direction of rotation

power transmission via friction discs

no noise in case of friction

noise in case of friction no-load operation

suitable for use as a starting clutch

Technical information: Observe maintenance instructions

Benefits:

Torque conservation

transition without jerking

easier engagement when the drive shaft is braked

wide range of applications

Type - code: FK96R

Connection type: Flanged gate valve

Connection outside diameter:

1-3/8 inch

1.375 inch

Number of connection cutters : 6

Shaft/roller size: W2300

Maximum rotational speed: 1000 rpm

Maximum static torque: 1050N m

Diameter of the cross sleeve: 27mm

Length of the cross: 84mm

DOuter diameter: 170mm

Llength of the coupling part: 75mm

OE reference number: 1172703

Fits machine/vehicle brand: Matsui

Size: W 2300cal
