T500810enc12c12 joint shaft t50 series l 810 620

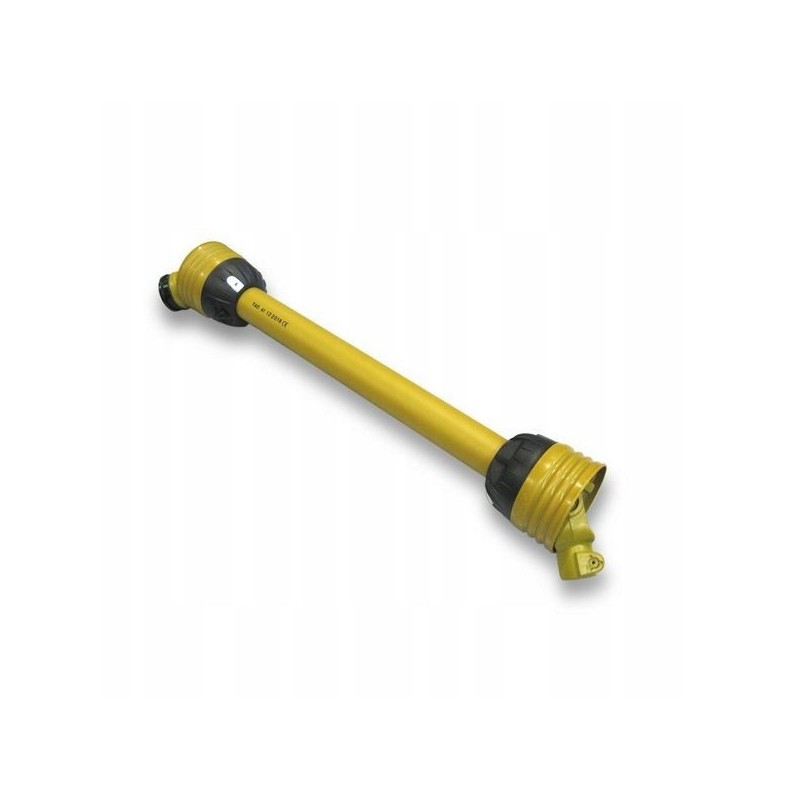

PTO shaft T50 series, L-810 620 Nm Comer INDEX: T500810ENC12C12

Length: 810mm

Technical information: - Follow the Comer operating instructions - Max. dynamic power 540 rpm: 35 kW, 620 Nm- Max. dynamic power 1000 rpm: 54 kW, 520 Nm- Values at a deflection angle of 5° and a service life of 1000 hours

Properties: - Lubrication frequency: 8 hours- There is a marking CE

Application: - Soil cultivation machines - Root crop harvesters - Mowers

Diameter of the cross bush on the machine side: 30.2mm

Diameter of the cross bush on the machine side tractor side: 30.2mm

Number of grooves for tractor side connection: 6

Outside diameter of tractor side connection: 1-3/8 inch

Shaft size : T50

Power at 540 rpm: 35kW

Length of the cross on the machine side: 80mm

Length of the cross on the tractor side: 80mm

Outer diameter of the connection from the machine side: 1-3/8 inch

Number of grooves of the connection from the machine side: 6

Power at 1000 rpm: 54kW

Type of connection on the tractor side: Flange gate valve

Connection type on the machine side: Flange gate valve

Accessories on the machine side: Quick-connect fork

Accessories on the tractor side : Quick-connect fork

Outer pipe wall thickness: 3mm

Outer pipe larger diameter: 51.6mm

Inner pipe wall thickness: 4mm

Major external diameter of the inner pipe: 45mm

Max dynamic torque: 1050N m

OE reference number: 07.525.026.11

Tube profile shape : Triangular
