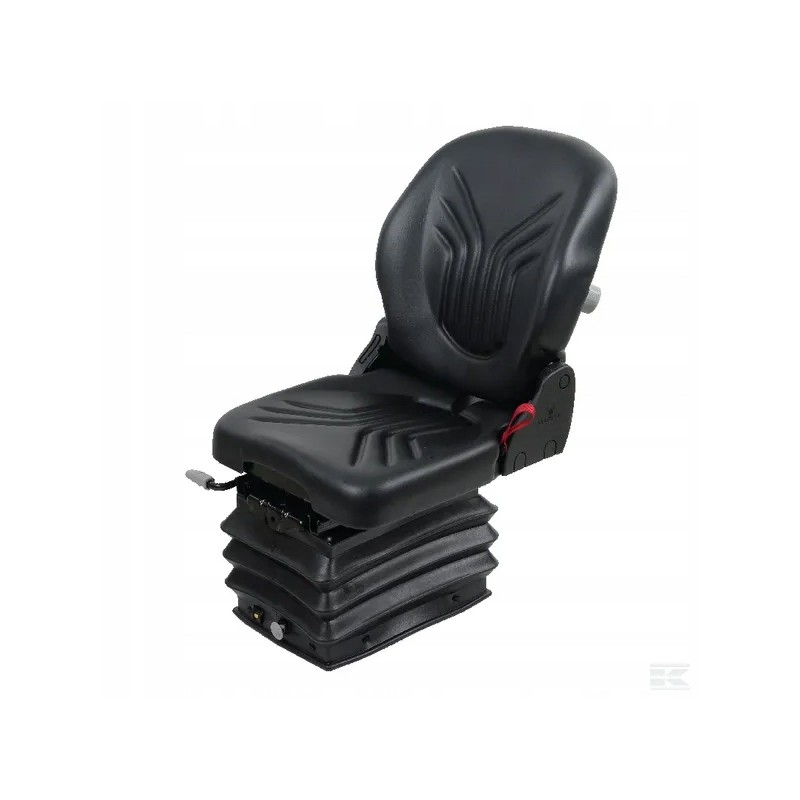

Compacto comfort s grammer seat

Compacto Comfort S Grammer SeatPart number: G1081368

Unit: Piece

Specifications:

Air suspension seat

Adjustable according to weight body pneumatically supported

Application:

For small tractors, construction machines and mini excavators with a narrow wheel track

Properties:

Seat cushion width 400 mm

Spring deflection 80 mm

Height adjustment 60 mm, stepless

Longitudinal adjustment 210 mm

Weight 26 kg

Backrest inclination adjustment

Mechanically adjustable lumbar support

Benefits:

Provides optimal sitting comfort in the smallest possible space

The right fit the seat position is achieved using the manual handle

Suspension type: Pneumatic

Upholstery material: PVC

Upholstery color: Black

Total width : 400 mm

Consists of:

Seat

With compressor

Without backrest extension

Without armrests

Armrests included: No

Headrest included: No

Seat belts included: No

Switch included: No

Auto-adjustment to the user's weight: No

Model: MSG93/511

Height adjustment: 6 cm

Depth: 532 mm

Minimum working load: 50 kg

Suspension stroke: 8 cm

Maximum working load: 130 kg

Fits machine models/ vehicles: MSG 93 / 511

Total height: 692 mm

Heated: No

Total length: 532 mm

Supply voltage: 12V
