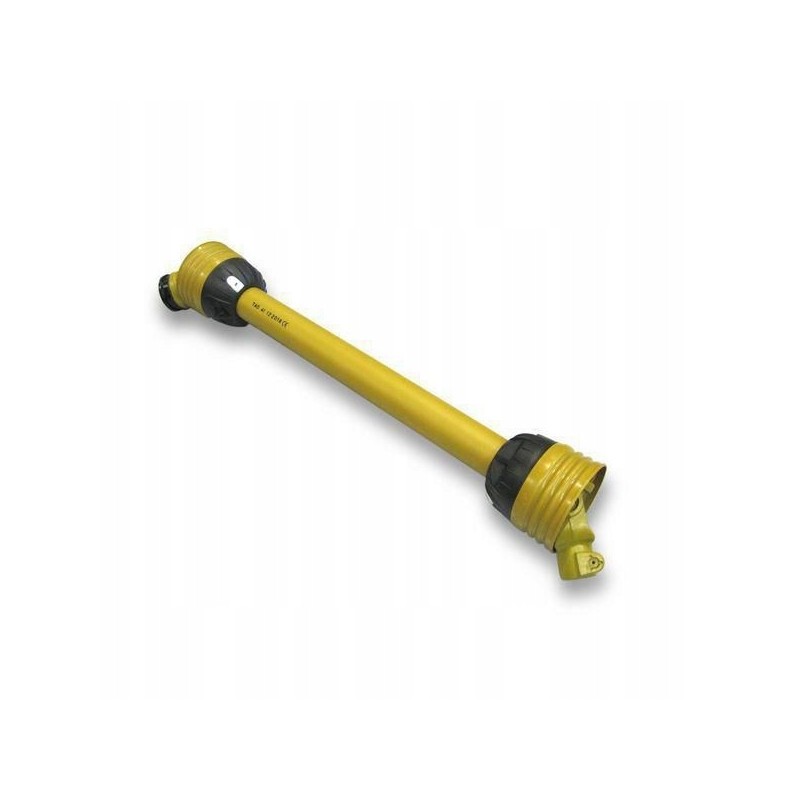

T200510enc12c12 drive shaft t20 series l 510 mm

PTO shaft T20 series, L-510 mm 270 Nm Comer INDEX: T200510ENC12C12

Length: 510mm

Technical information: - Follow the Comer operating instructions - Max. dynamic capacity 540 rpm : 15 kW, 270 Nm- Max. dynamic capacity 1000 rpm: 23 kW, 220 Nm- Values at a deflection angle of 5° and a service life of 1000 hours

Properties: - Lubrication frequency: 8 hours- Occurs CE marking

Application: - Hay rake - Hay tedder - Field sprayers

Diameter of the cross sleeve on the machine side: 23.8mm

Diameter of the cross sleeve on the side tractor: 23.8mm

Number of grooves of the tractor-side connection: 6

Outside diameter of the tractor-side connection: 1-3/8inch

Shaft size: T20

Power at 540 rpm: 15kW

Length of the cross on the machine side: 61.3mm

Length of the cross on the tractor side: 61.3mm

Outer diameter of the connection from the machine side: 1-3/8 inch

Number of grooves of the connection from the machine side: 6

Power at 1000 rpm: 23kW

Connection type on the tractor side: Flange gate

Connection type on the machine side: Flange gate

Additions on the machine side: Quick-connect fork

Accessories on the tractor side: Quick-connect fork

Outer pipe wall thickness: 3.2mm

Major external diameter of the outer pipe: 36mm

Inner pipe wall thickness: 4mm< p>

Major external diameter of the inner tube: 29mm

Max dynamic torque: 450N m

OE reference number: 07.225.025.11

Pipe profile shape: Triangular
