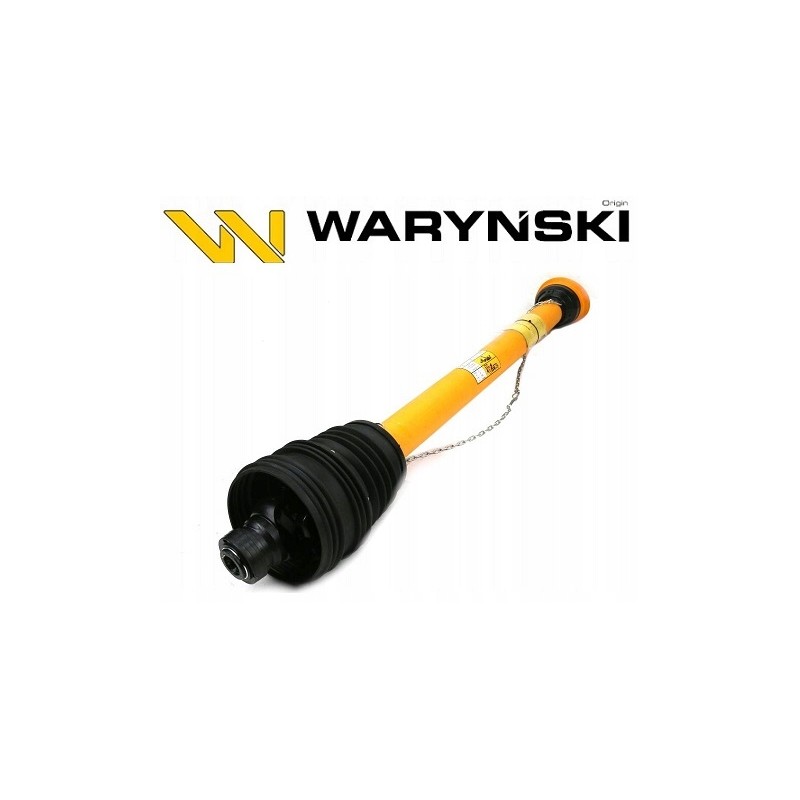

PTO shaft shaft 1510 2290 1240nm z21 8r warynski

PTO shaft 1510-2290mm 1240Nm wide-angle Z21 CE 2020 series 8R Waryński [W8B1921510]Mounting to the tractor: 1 3/8' Z6 inch

Mounting to the machine: 1 3/8' Z21 inch

Type of telescopic connector: triangular pipe

Minimum length: 1510 mm

Maximum length: 2290 mm

Nominal power: 70 (95) KW ( HP)

Clutch: Wide angle

Torque: 1240 Nm

Clutch disengaging power: None

Inner tube thickness: 54 mm< p>

Thickness of the outer tube: 63 mm

Working angle: Max 35° temporarily 80°

Inner tube wall thickness: 5 mm

Thickness outer pipe walls: 4 mm

Bearing diameter: 35.01 mm

Height of the cross: 106.3 mm

Works with: External fork -WR227801, Cross - WR219801, Internal pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of the products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.
