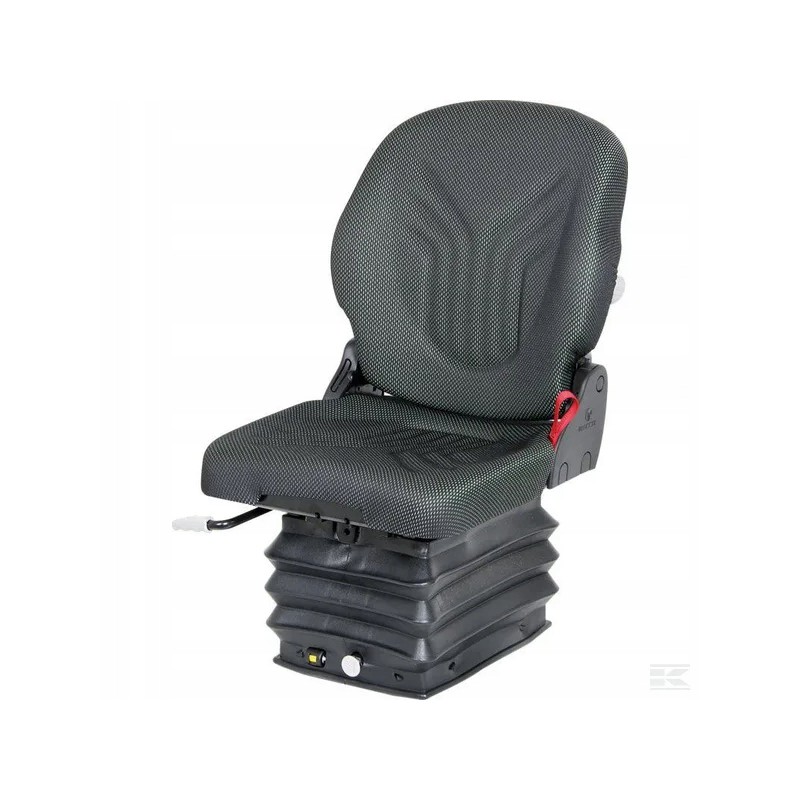

Compacto comfort s grammer new design seat

Compacto Comfort S seat, Grammer New Design Part number: G1289043

Unit: Piece

Specifications:

Air suspension seat

Adjustment in pneumatically supported depending on body weight

Application:

For small tractors, construction machines and mini excavators with a narrow wheel track

Properties:

Seat cushion width 400 mm

Spring deflection 80 mm

Height adjustment 60 mm, stepless

Longitudinal adjustment 210 mm

Weight 26 kg< p>

Backrest inclination adjustment

Mechanically adjustable lumbar support

Benefits:

Provides optimal sitting comfort in the smallest possible space

The correct seat position is achieved using the hand grip

Suspension type: Pneumatic

Upholstery material: Fabric

Upholstery color: Black

Total width: 400 mm

Consists of:

Seat

With compressor

Without backrest extension

Without armrests

Armrests included: No

Headrest included: No

Seat belts included: No

Switch in included, No

Auto-adjustment to the user's weight: No

Model: MSG93/511

Height adjustment: 6 cm

Depth: 532 mm

Minimum working load: 50 kg

Suspension travel: 8 cm

Maximum working load: 130 kg

Fits to machine/vehicle models: MSG93/511

Total height: 692 mm

Heated: No

Total length: 532 mm

Voltage power supply: 12 V
