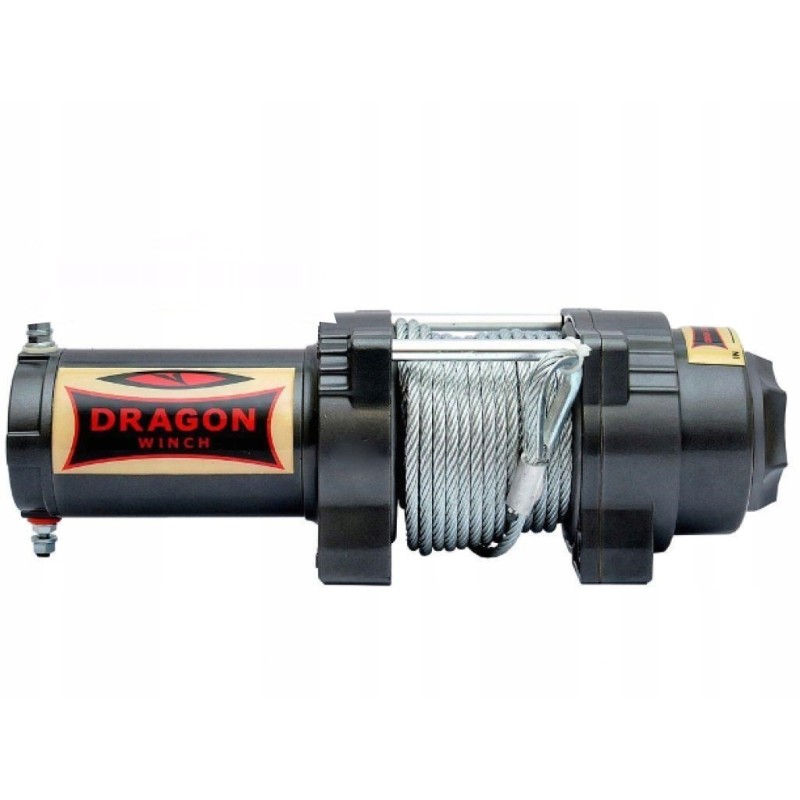

Dragon 4500 2 1t 12v winch for quad

Dragon Winch HIGHLANDER DWH 4500 HD

DWH4500

Application: extreme quads, UTV

Voltage: 12 V

Power: 1.9 HP

Towing capacity: 4,500 lb/ 2,041 kg

Gear: three-stage planetary gear

Reduction: 136:1

Brake type: automatic

Rope length steel: 15 m

Dimensions (LxWxH): 340 mm x 114 mm x 120 mm

Gross weight of the set: 13 kg

Spacing of mounting screws: 124 mm x 76 mm

The set includes:

steel rope

hook

wiring

relay

roller guide

universal mounting plate

wireless remote control

handlebar switch

mounting screws

Rope winding speed and power consumption (first layer of rope on the drum)

rope load, kg, none, 907, 2041

rope speed, m/min, 7.5, 4, 2.1

current consumption (12 V), amperes, 25, 90, 160

Pulling force depending on the rope layer rope layer, , 1, 2, 3, 4, 5

rope pull, kg, 2041, 1588, 1412, 1278, 1072

number of rope on the drum, m, 3, 5.9, 7.8, 12.5, 15
