DWH3000HD Quad12v electric winch

Dragon Winch DWH 3000 HD NEW MODEL HIGHLANDER series - when speed matters Main features of the winch:

Towing capacity 1326 kg (3000 lbs)

Voltage 12V

1.6 HP engine

15 m long rope

3-speed gearbox made of high-quality steel

Contactor type relay

Automatic brake

Consumer Laurel - thanks to high recognition and high quality of products, winner of the consumer award.

ISO 9001 certificate - confirmed highest quality of materials used and constantly improved processes for improving product quality.

CE Declaration of Conformity - our products meet the requirements of the so-called directives. 'New Approach' of the European Union.

100% Dragon Winch - there is only one original. Certainty and reliability for many years, as well as technical support, competent advice and express service.

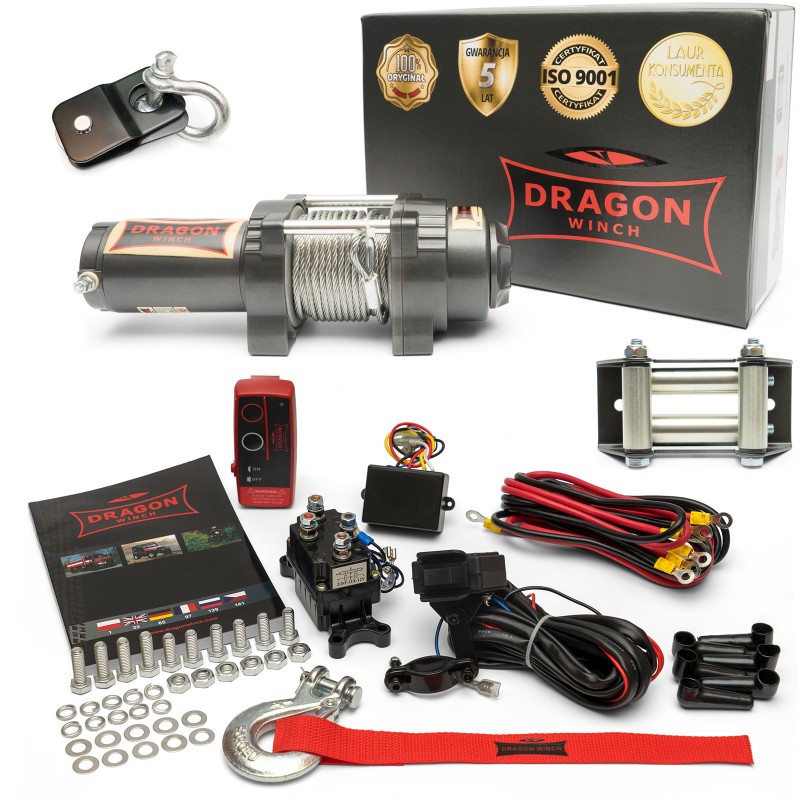

The set includes: Roller guide

Cables and screws

Rope with hook

Relay 200 A

Cable controller with handle

Wireless remote control with receiver

Universal mounting plate

Manual in Polish

4T Pulley

5/8' Shackle

Gloves

Block and Shackle This kit allows you to double the pulling power of your winch as shown in the illustration above. It will also be useful when we want to give a different direction to a line that is wound onto the drum at a large angle.

Buy once and for good - you can't afford cheaper substitutes. Experience the power of the dragon. What sets it apart from others? For those looking for a powerful winch without having to break the bank.

Its design allows for various mounting options, making it ideal for quads, plows, buggies.

A winch with a modern look, proven performance and legendary reliability from Dragon Winch.

The new sealing system ensures a high degree of resistance to water, dust and other contaminants.

3-speed planetary gear with new design for efficient and reliable operation.

It is controlled independently using a cable remote control or a wireless remote control with a range of 30 meters.

Highlander winch series - low gear ratio and powerful engines, which guarantees fast operation when winding and unwinding the rope

Tested in all conditions. Guarantee of quadruple protection against: water

mud

snow

sand

Wireless control as standard Ergonomic wireless remote control with an increased range of up to 40 meters. Equipped with an on/off switch and a hole for hanging on a lanyard. Powered by one A23 battery.

Additionally, the set includes a 'rocker' controller connected with cables. Mounted with a handle.

Gallery of the presented set:General technical specifications: Application: large and medium-sized quads, UTV, plow operation

Voltage 12V

Power 1.6 HP

Pulling capacity 3,000 lb / 1,326 kg, 6,000 lb / 2,652 kg - using a block

Three-stage planetary gearbox

Reduction 136 : 1

Brake type automatic

Length of steel rope 15 m

4-roller guide

Dimensions (L x W x H) 347 mm x 114 mm x 120 mm

Spacing of mounting screws 124 mm x 76 mm

Weight 10 kg

Efficiency:Rope winding speed (first layer of rope on the drum)

1. Rope load in kg

2. Rope speed m/min.

3. Current consumption in A

Pulling force depending on the rope layer 4. Rope layer

5. Rope pull in kg

6. Number of rope on the drum in meters

Dimensions:
