Dragon Winch DWM 3500st winch for Quad Plug

Dragon Winch DWM 3500 ST NEW MODEL MAVERICK series - power without breaking the bank Main features of the winch:

Towing capacity 1588 kg (3500 lbs)

Voltage 12V

0.9 HP engine

15 m long rope

3-speed gearbox made of high-quality steel

Contactor type relay

Automatic brake

Consumer Laurel - thanks to high recognition and high quality of products, winner of the consumer award.

ISO 9001 certificate - confirmed highest quality of materials used and constantly improved processes for improving product quality.

CE Declaration of Conformity - our products meet the requirements of the so-called directives. 'New Approach' of the European Union.

100% Dragon Winch - there is only one original. Certainty and reliability for many years, as well as technical support, competent advice and express service.

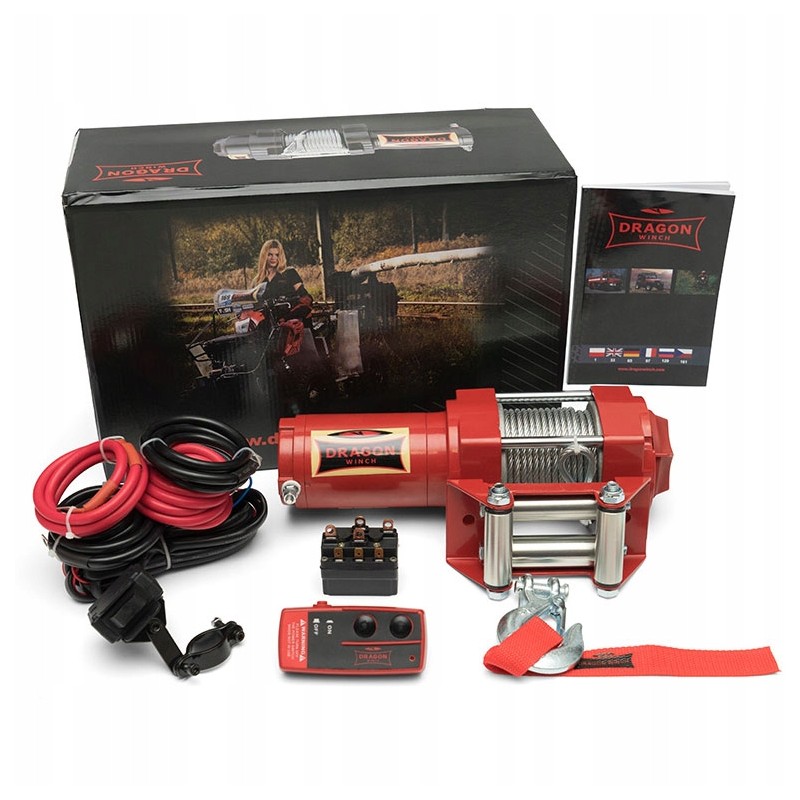

The set includes: Roller guide

Cables and screws

Rope with hook

Relay 120 A

Cable controller with handle

Wireless remote control with receiver

Universal mounting plate

Manual in Polish

Buy once and do it right - you can't afford cheaper substitutes. Experience the power of the dragon. What sets it apart from others?

For those looking for a powerful winch without having to break the bank.

Its design allows for various mounting options, making it ideal for quads, plows, buggies.

A winch with a modern look, proven performance and legendary reliability from Dragon Winch.

The new sealing system ensures a high degree of resistance to water, dust and other contaminants.

3-speed planetary gear with new design for efficient and reliable operation.

It is controlled independently using a cable remote control or a wireless remote control with a range of 30 meters.

Tested in all conditions. Guaranteed quadruple protection against: rain

mud

snow

sand

Wireless control as standard Ergonomic wireless remote control with an increased range of up to 40 meters. Equipped with an on/off switch and a hole for hanging on a lanyard. Powered by one A23 battery.

Additionally, the set includes a 'rocker' controller connected with cables. Mounted using a handle.

Gallery of the presented set: General technical specifications:

Application: large and medium quads, UTV, plow operation Voltage 12 V

Power 0.9 HP

Pulling capacity 3,500 lb / 1,588 kg or 7,000 lb / 3,176 kg - using a block

Three-stage planetary gearbox Reduction 153 : 1

Brake type: self-locking Length of steel rope 15 m 4-roller guide

Dimensions (L x W x H) 325 mm x 105 mm x 95 mm

Weight 11 kg

Performance: Rope winding speed (first layer of rope on the drum)

1. Rope load in kg

2. Rope speed m/min.

3. Current consumption in A

Pulling force depending on the rope layer 4. Rope layer

5. Rope pull in kg

6. Number of rope on the drum in meters

Dimensions:Dragon Winch power pyramid - something good for everyone: The drawing below shows the full range of Dragon Winch winches.

The first value shows the towing capacity expressed in pounds, i.e. lbs. The second number (in brackets) - winch pulling capacity in kilograms.

In addition, the winches are marked with the type of power supply: 12V, 24V and hydraulic power supply.
