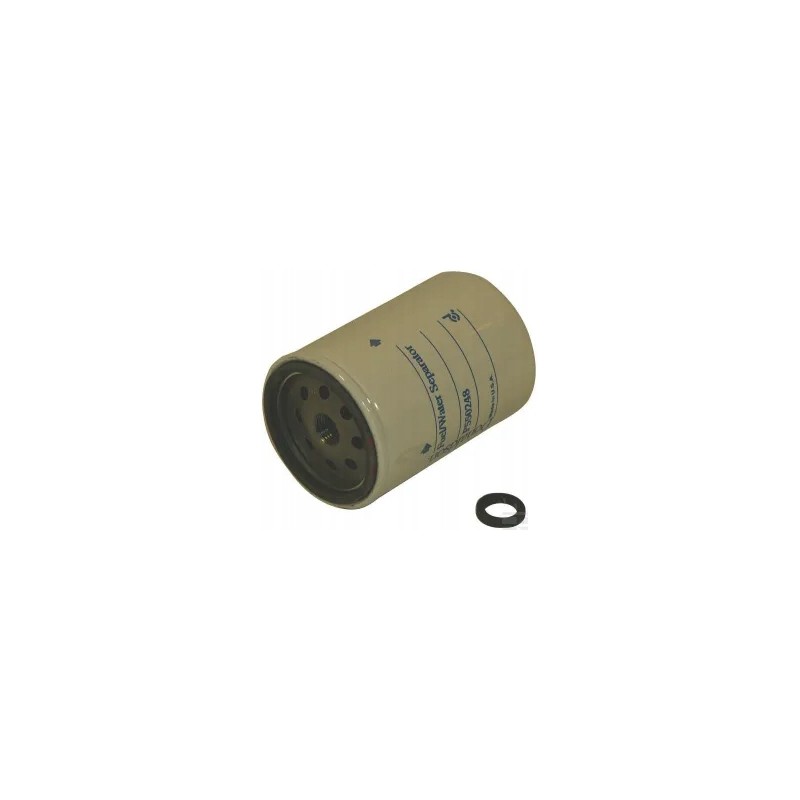

Donaldson P550248 fuel filter

Donaldson P550248 fuel filter

Dimensions:

length - 147.6 mm

outer diameter - 77.1 mm

outer seal diameter - 70.2 mm

inner diameter seals - 60.5 mm

Mounting thread type - Metric

Mounting thread pitch - 1.50 mm

Mounting thread diameter - M16

Filtering quality - 15 µm

Filtration level - Absolute

Working pressure max. - 5.5 BAR

Filtered medium - fuel

Water separator - Yes

OE reference number:

J286503

Substitutes:

P550248, WK842/2, WK716/2x, BF1226, J286503, J843760, J903202, J931062, K6150508, 114 545A1 , 1240619H2, 1290383H1, 71104220, 8025295, FSW4101, 5030, AX1004559, SN1251, SK3502, TP1069, 72515734, BF587D, BF7921, 5821330, 86 472, 86472MP, 96031, 1902138, 47135707, 84171692, 84299977, 86990957, 3I1808, 7176496, 649500 , AZF785, AZL785, 1492827, 3286503, 3831062, 3843760, 3903202, 3931062, 3931064, 0490160, 490160, CBU1177, CBU1920, CVU1177, 731759 65, 73175973, FS1226, FS1251, FS5327, 9576P550248, F3HZ9365C, F3HZ9365E, P3522A, DNP550248, FF898 , HD0248, H179WK, H70WK03, 59477570, F121868, F433395, 1240619H1, 20701K1230, 6732716310, 6733719110, CUFS1251, LFF8062, 601, 7176601 , HDF601, KC190, MCJ931062, 940000604, 1133493R1, 76194582, 86555246, 87800220, 87803264, L86990957, 1866524 , F64424, 7701030195, Z156, Z533, FC7103, SFF1251, 15007582, 3134055, WGFS1226, WGFS1251, , KC18/1, DAFCBU1920, 33472EWIX, PP861/5, 114545A1- CNH, 84214564-CNH, 84299977-CNH, A4027606, E6646, 95472, 0016482200, 9014100200, 05821330, P550248288140, 350066, 531009, 2011055, C3903202, 77383303, 837S, 2241108, ALG2051, 83 20270, 1J43043060, 537A0016, E537A0016, 29215544, 8480286, 330560222, V26560608, L02322, 015007582, 688392, T121082, VPD6032, 237490003, 2374900031, FS550248, 150127002, 580004421, MAT-CZZ-02089URSUS,
