Dkr fitting dn10 1 2sn g1 2 x10 hydrolider

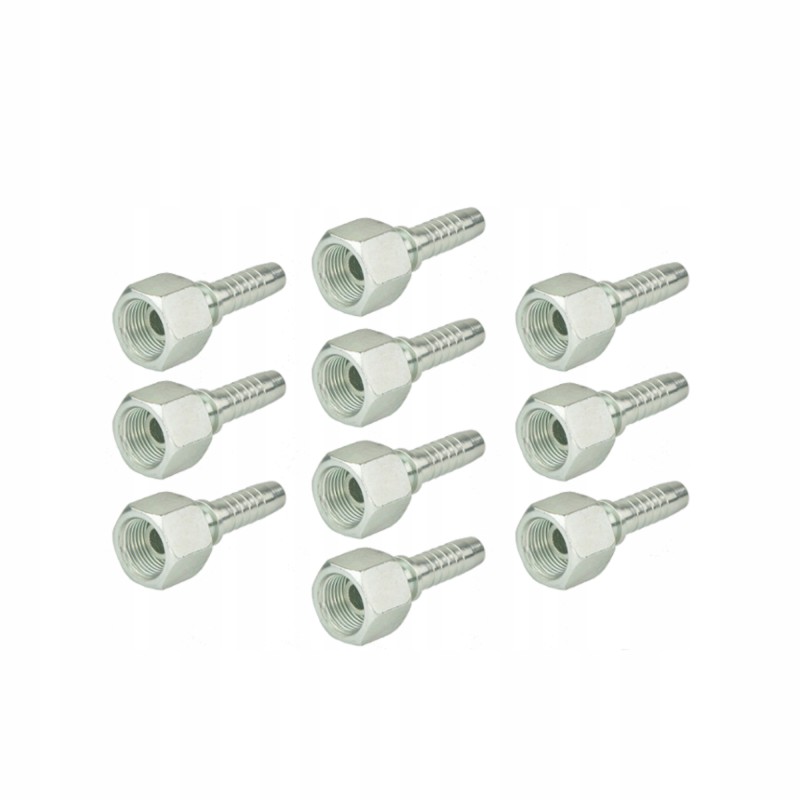

STRAIGHT HYDRAULIC FITTING DKR 1/2'' FOR HYDRAULIC HOSE 1SN / 2SN DN10 Production:

Hydrolider, symbol: 4.09.10.015.10

Application:

The fitting is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN10 group with single and double braiding. Fits sleeves from the DN10 group with the marking 1SN and 2SN.

Technical data:

Straight fitting, inch [BSP] 1/2" thread tip, light version with a 60° cone. Made according to the following standards: PN-65/M 73140 , PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm Chromate passivation type A, free of chromium (VI) in accordance with DIN EN 15205. Thanks technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN10 1SN, DN10 2SN or another with an internal diameter of 10mm

Made in Poland for Agricola Hydraulic Component
